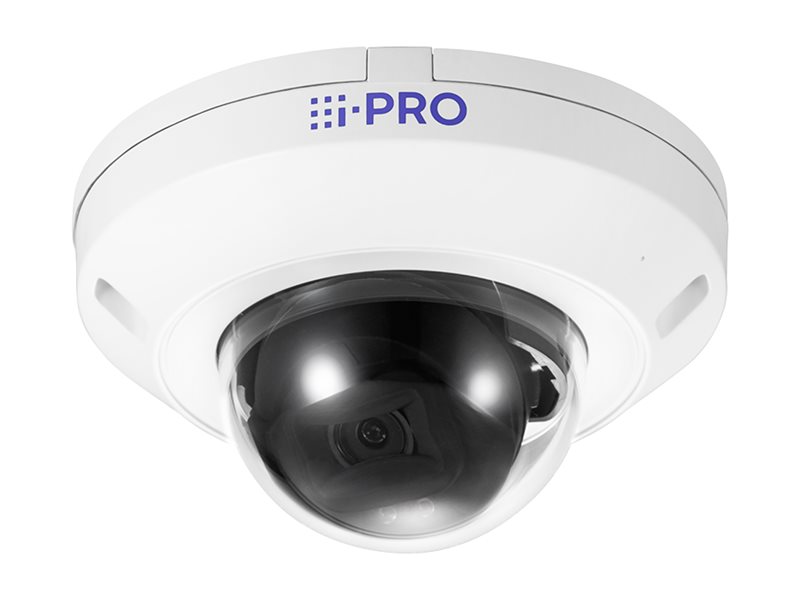

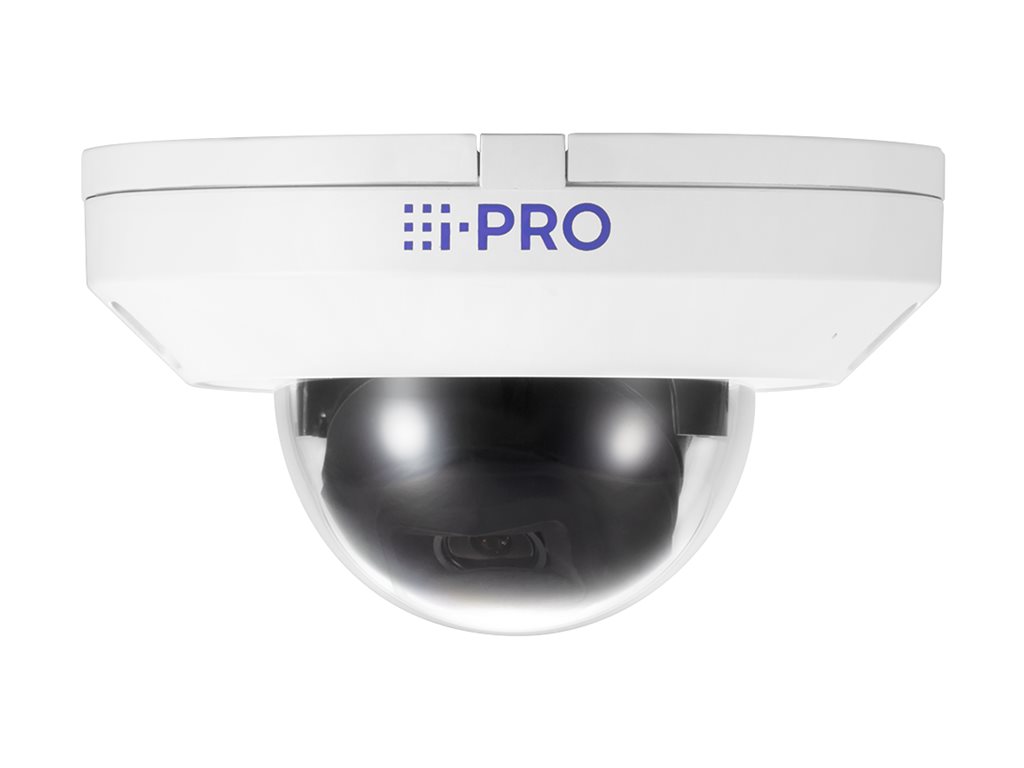

i-PRO Americas - i-PRO WV-U25550-F3L
Network surveillance camera - dome - outdoor - dust resistant / water resistant / shock resistant / wind resistant / corrosion resistant - color (Day&Night) - 2592 x 1944 - LAN 10/100 - H.264, H.265 - DC 48 V / PoE
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | i-PRO WV-U25550-F3L - network surveillance camera - dome |
| Device Type | Network surveillance camera - fixed - dome - outdoor - dust resistant / water resistant / shock resistant / wind resistant / corrosion resistant |
| Dimensions (WxDxH) | 4.3 in x 4.3 in x 2.4 in |
| Weight | 9.52 oz |
| Color | I-PRO White |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 2592 x 1944 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | CMOS - 1/2.8" |
| Minimum Illumination | 0.11 lux - color - F2.0 - 30 IRE - shutter 1/30 sec ¦ 0.16 lux - color - F2.0 - 50 IRE - shutter 1/30 sec ¦ 0.01 lux - color - F2.0 - 50 IRE - shutter 16/30 sec ¦ 0 lux - B&W - F2.0 - 50 IRE - shutter 1/30 sec / infrared LEDs on ¦ 0.07 lux - B&W - F2.0 - 50 IRE - shutter 1/30 sec ¦ 0.004 lux - B&W - F2.0 - 50 IRE - shutter 16/30 sec |
| Focal Length | 3.2 mm - 3.2 mm |
| Focus Adjustment | (min distance 3.3 ft) |
| Lens Iris | F/2.0 |
| Panning Range (degree) | -175 to +175 |
| Tilting Range (degree) | -30 to +80 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | DC 48 V / PoE |
| Features | AI Video Motion Detection (AI-VMD), Ambarella CV25M CPU, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, auto ICR, digital noise reduction, Scene Change Detection (SCD), Video Motion Detection (VMD), 8 privacy zones, Variable Image Quality on Specified area (VIQS), 90° image rotation, 180° image rotation, 270° image rotation, Variable Bitrate (VBR), Unicast Streaming, Multicast Streaming, Group of Pictures (GOP), Device Certificate GlobalSign pre-installed, user authentication, host authentication, Auto VIQS, up to 14 users, 46.1m detect distance, 18.4m observe distance, 9.2 m recognize distance, DORI coverage, alarm notifications, e-mail alerts, 120 dB dynamic range |
| Manufacturer Warranty | 7-year warranty |
| General | |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 4.3 in |
| Depth | 4.3 in |
| Height | 2.4 in |
| Weight | 9.52 oz |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 7 years |
| Miscellaneous | |
| Compliant Standards | IEEE 802.1x, NDAA, IEEE 802.3af, UL 62368-1 Third Edition, cUL, CAN/CSA-C22.2 No. 62368-1-19, IEC 62368-1 Third Edition, FCC Part 15 B Class A, ICES-003 issue 7 Class A, EN55032 Class A, EN55035 |
| Color | I-PRO White |
| Power | |
| Power Requirements | DC 48 V / PoE - 200 mA |
| Power Device | 9.6 Watt |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - dust resistant / water resistant / shock resistant / wind resistant / corrosion resistant |
| Digital Video Format | H.264, H.265 |
| Max Digital Video Resolution | 2592 x 1944 |
| Motion Detection | Yes |
| Digital Zoom | 4 |
| Exposure Range | 1/25 sec - 1/10000 sec |
| Minimum Illumination | 0.11 lux - color - F2.0 - 30 IRE - shutter 1/30 sec ¦ 0.16 lux - color - F2.0 - 50 IRE - shutter 1/30 sec ¦ 0.01 lux - color - F2.0 - 50 IRE - shutter 16/30 sec ¦ 0 lux - B&W - F2.0 - 50 IRE - shutter 1/30 sec / infrared LEDs on ¦ 0.07 lux - B&W - F2.0 - 50 IRE - shutter 1/30 sec ¦ 0.004 lux - B&W - F2.0 - 50 IRE - shutter 16/30 sec |
| Video Capture | 2592 x 1944 @ 30 fps ¦ 2560 x 1440 @ 30 fps ¦ 1920 x 1080 @ 30 fps ¦ 1280 x 720 @ 30 fps ¦ 640 x 360 @ 30 fps ¦ 320 x 180 @ 30 fps ¦ 2560 x 1920 @ 30 fps ¦ 1280 x 960 @ 30 fps ¦ 640 x 480 @ 30 fps ¦ 400 x 300 @ 30 fps ¦ 320 x 240 @ 30 fps |
| Supported Image Formats | JPEG |
| Features | AI Video Motion Detection (AI-VMD), Ambarella CV25M CPU, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, auto ICR, digital noise reduction, Scene Change Detection (SCD), Video Motion Detection (VMD), 8 privacy zones, Variable Image Quality on Specified area (VIQS), 90° image rotation, 180° image rotation, 270° image rotation, Variable Bitrate (VBR), Unicast Streaming, Multicast Streaming, Group of Pictures (GOP), Device Certificate GlobalSign pre-installed, user authentication, host authentication, Auto VIQS, up to 14 users, 46.1m detect distance, 18.4m observe distance, 9.2 m recognize distance, DORI coverage, alarm notifications, e-mail alerts, 120 dB dynamic range |
| Lens Construction | |
| Focal Length | 3.2 mm - 3.2 mm |
| Lens Iris | F/2.0 |
| Min Focus Distance | 3.3 ft |
| Horizontal Field of View (degree) | 96 |
| Vertical Field of View (degree) | 52 |
| Image Sensor | |
| Type | CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv6, TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP 1, SNMP 2, SNMP 3, DHCPv6, RTP, MLD, ICMP, ARP, DiffServ, MQTT, LLDP, IPv4, RTSP, DHCP, DDNS, UPnP, IGMP, RTCP |
| Panning | |
| Range (degree) | -175 to +175 |
| Internet of Things (IoT) | |
| Supported Host Device Platform | Android |
| Tilting | |
| Range (degree) | -30 to +80 |
