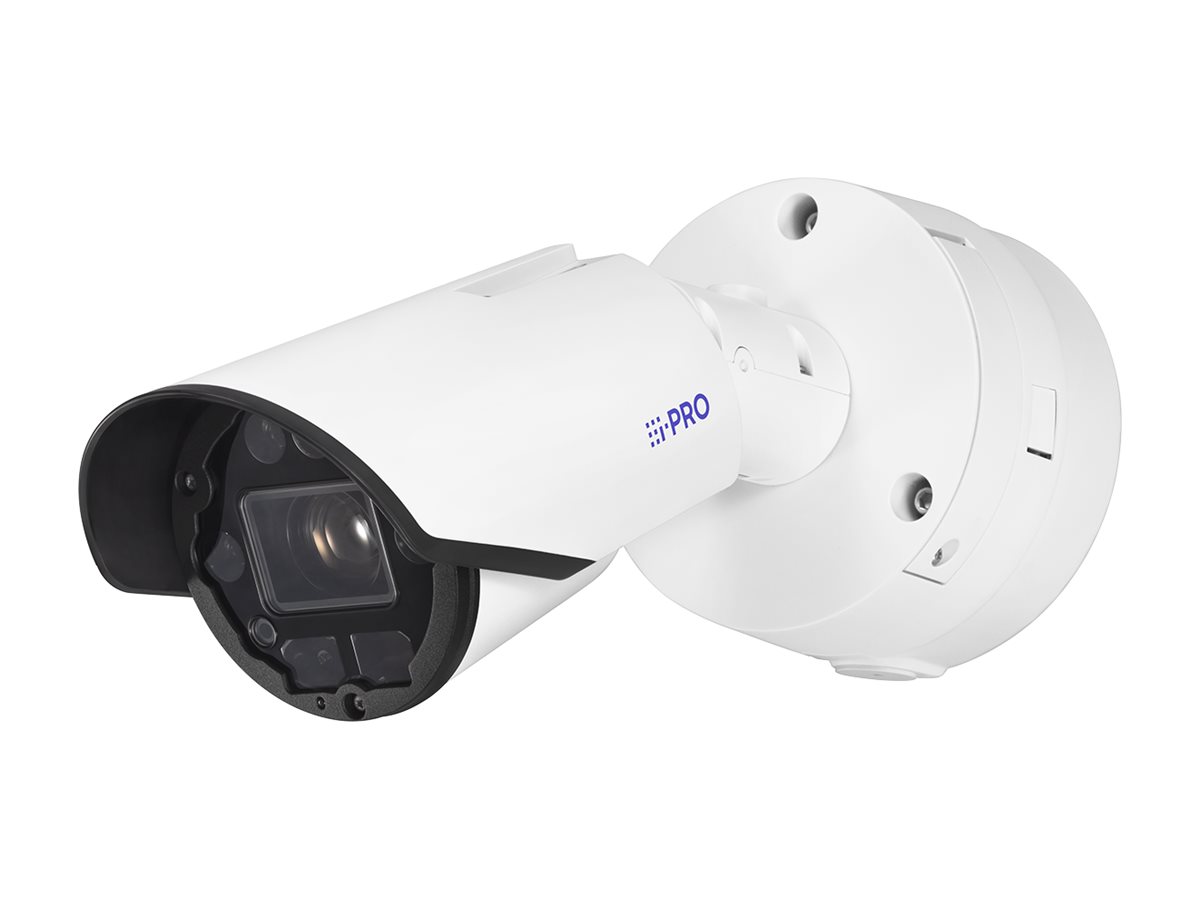

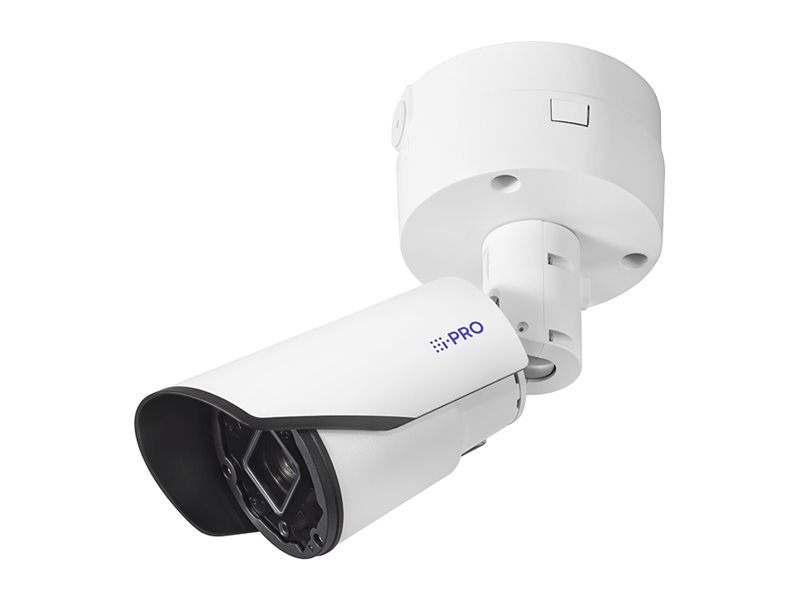

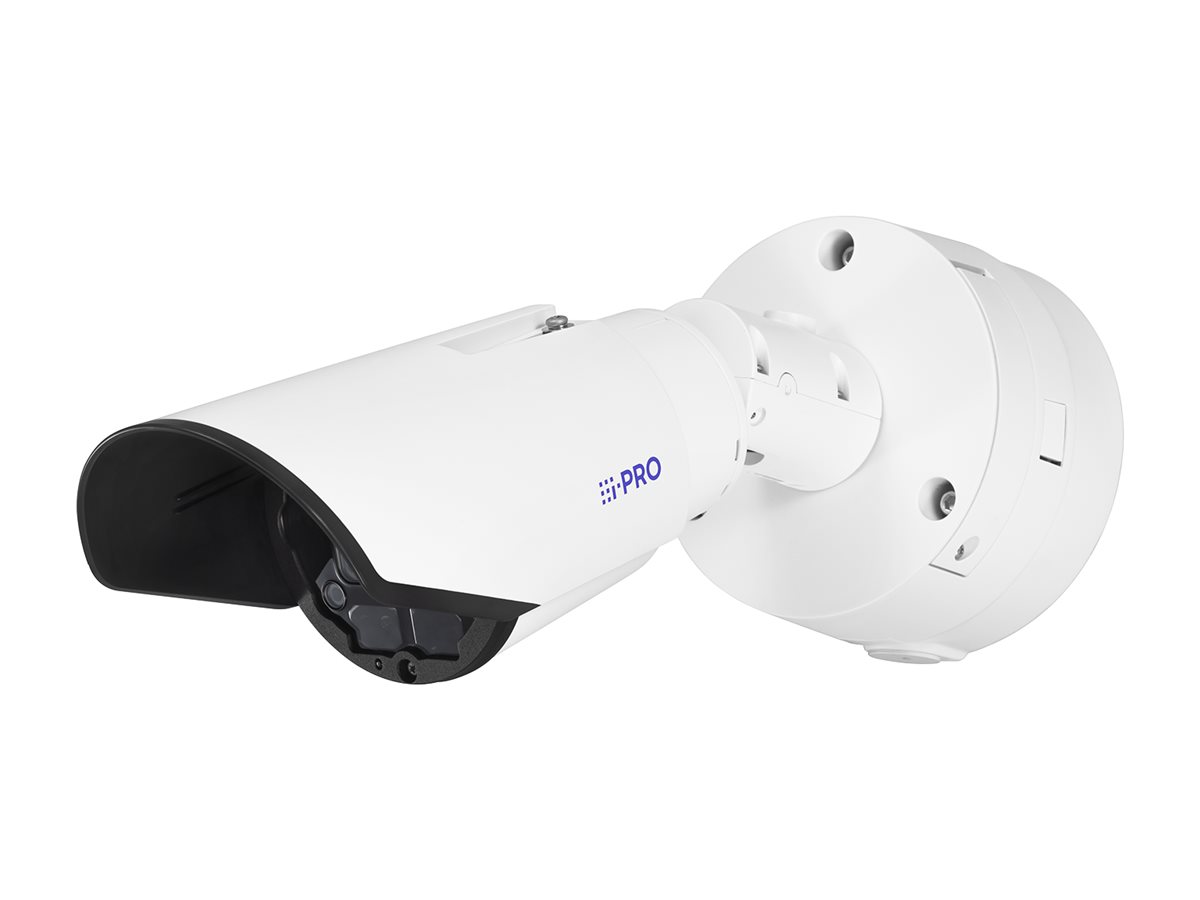

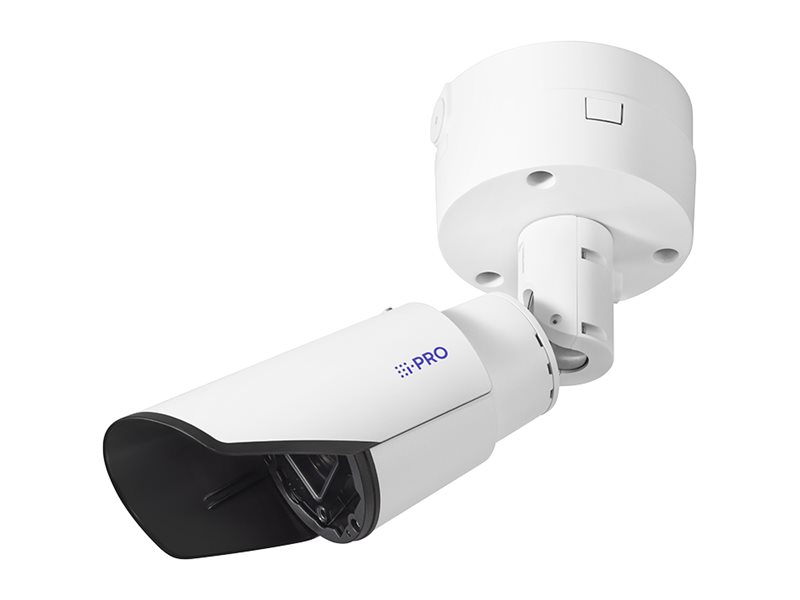

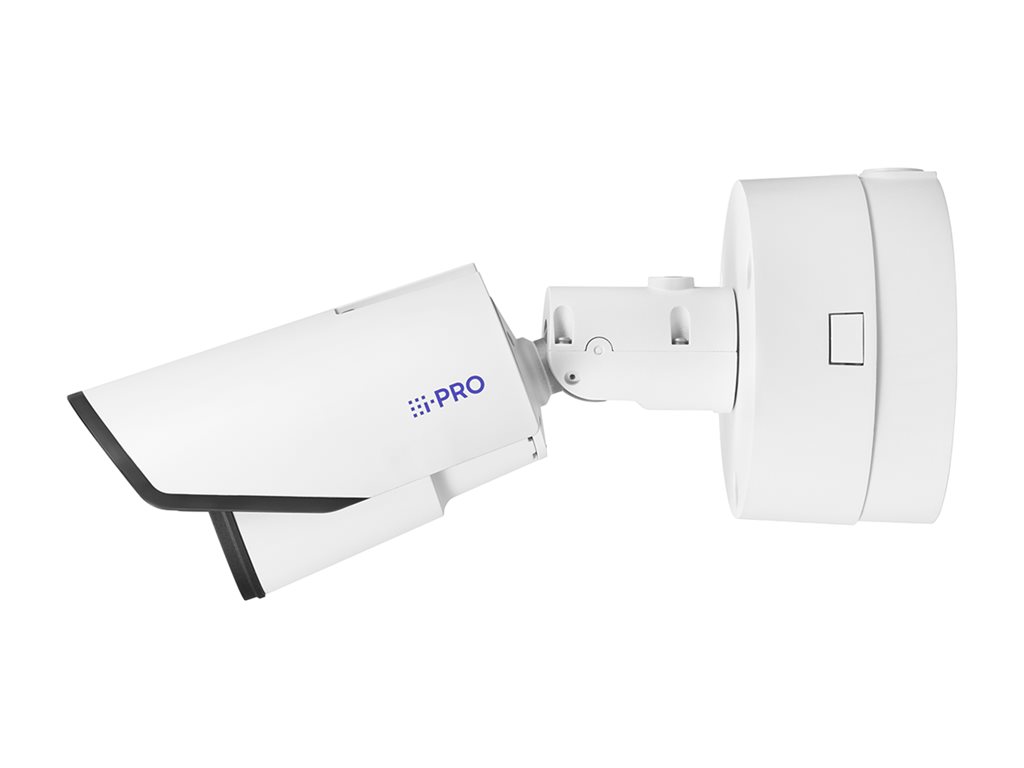

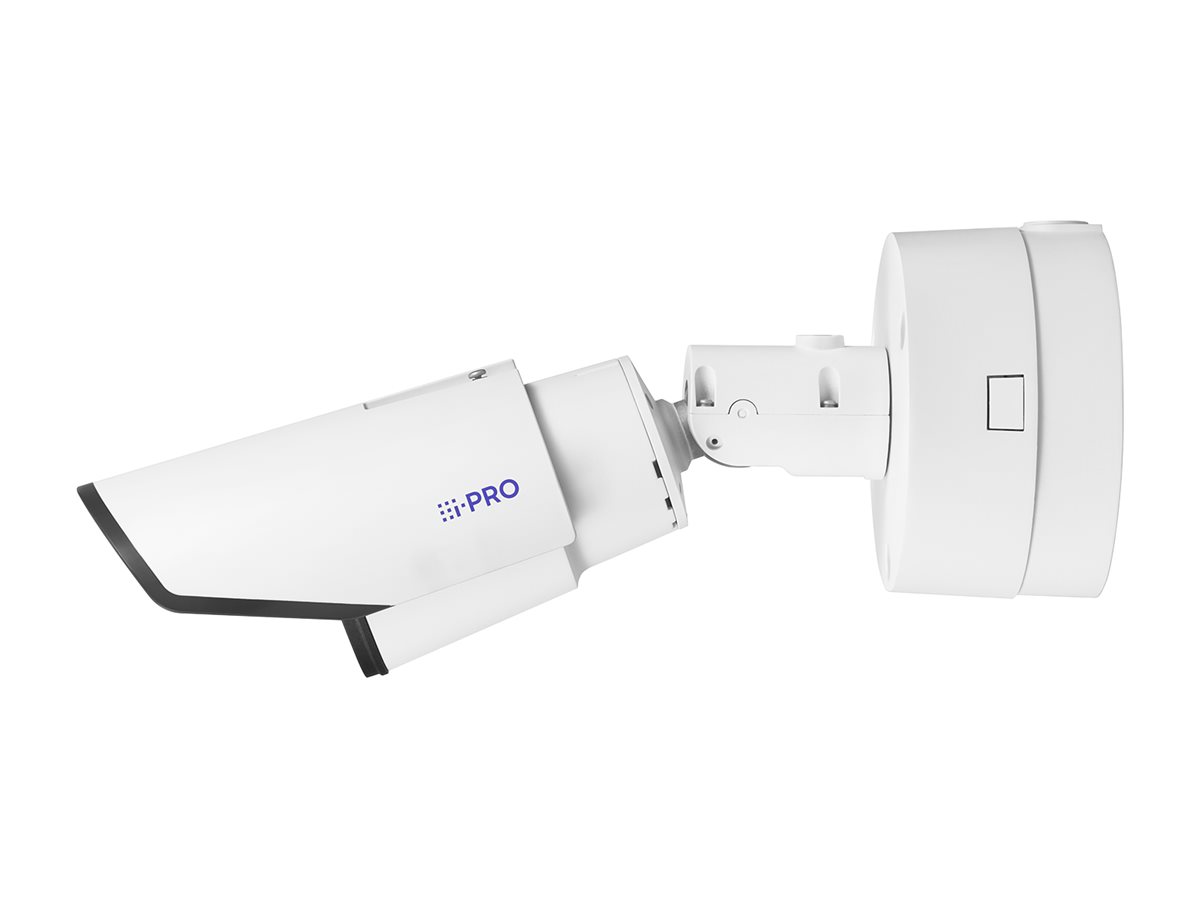

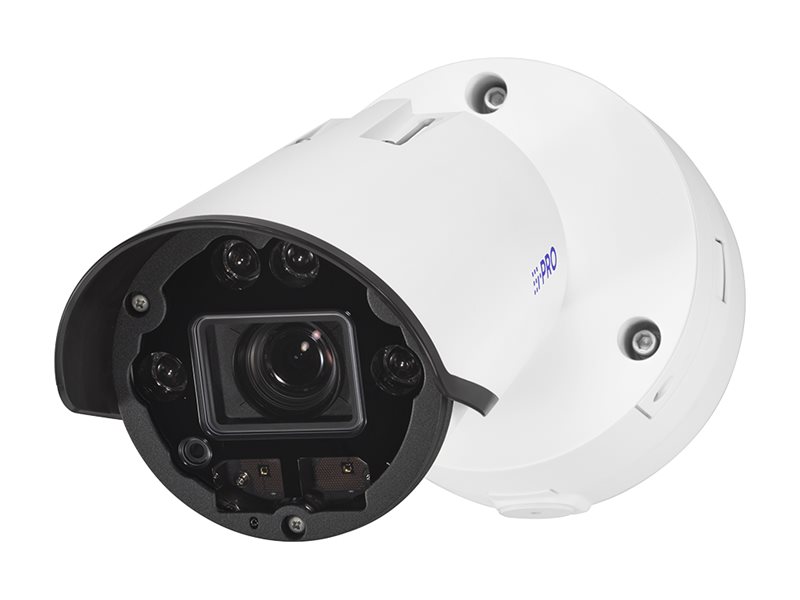

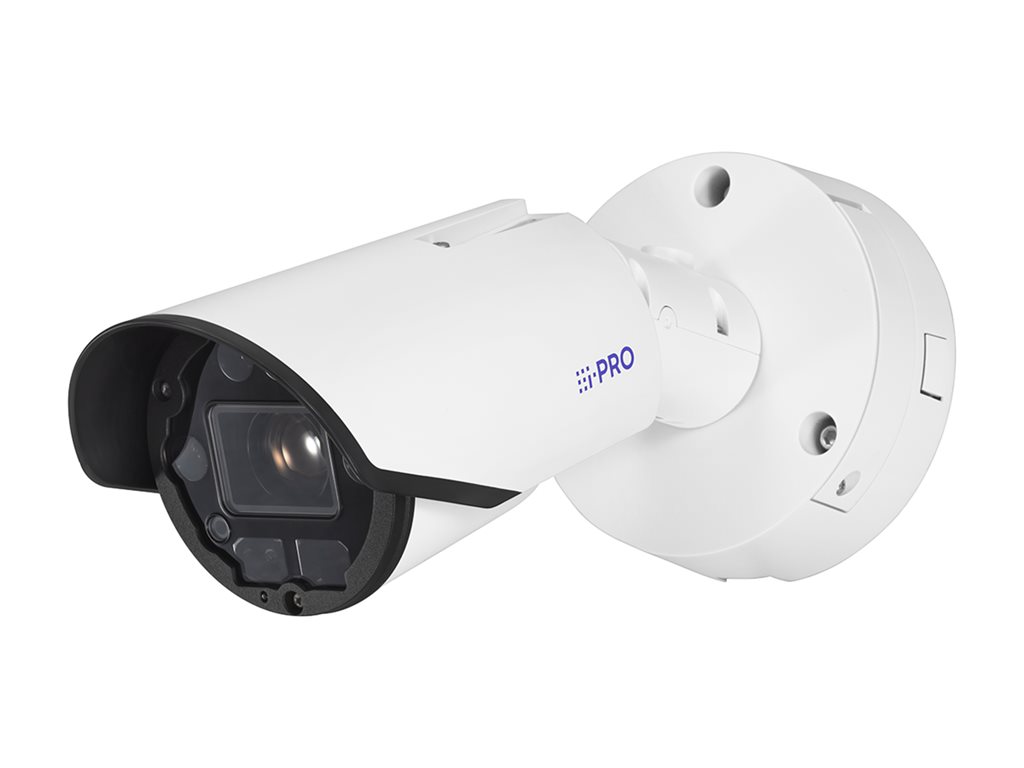

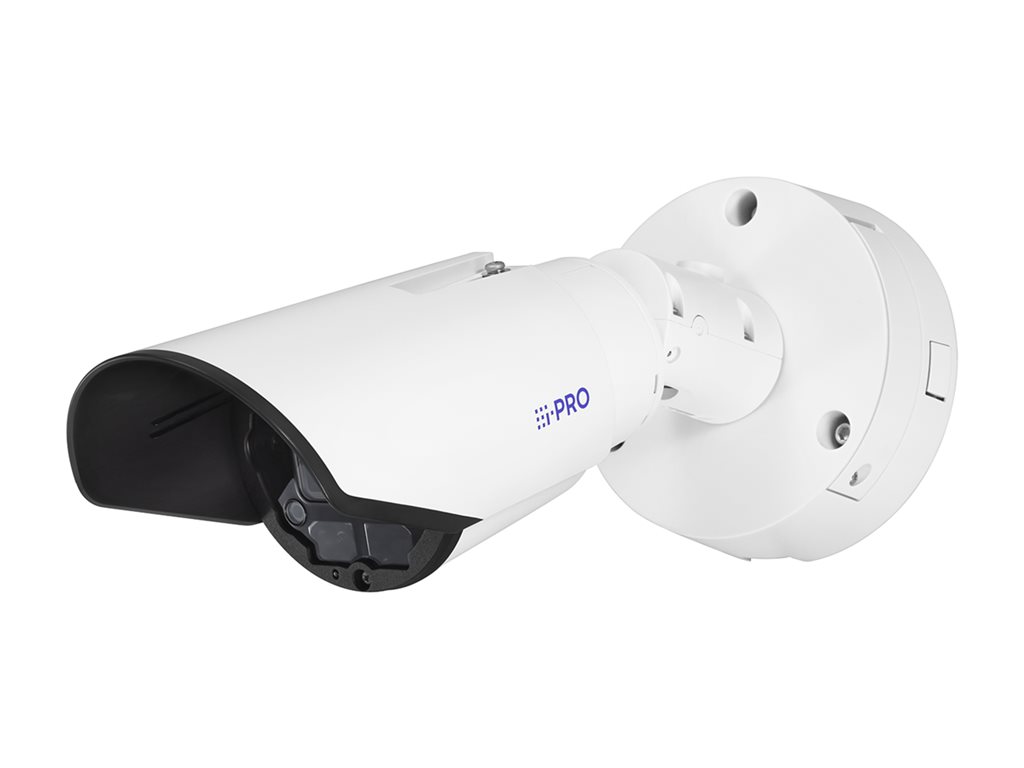

i-PRO Americas - i-PRO WV-X15502-Z1L
Network surveillance camera - zoom - bullet - outdoor - dust resistant / water resistant / shock resistant / wind resistant / vibration resistant - color (Day&Night) - 5 MP - 3072 x 2304 - motorized - audio - LAN 10/100 - H.264, H.265, MJPEG - DC 54 V / PoE++ Class 5
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | i-PRO WV-X15502-Z1L - network surveillance camera - bullet |
| Device Type | Network surveillance camera - zoom - bullet - outdoor - dust resistant / water resistant / shock resistant / wind resistant / vibration resistant |
| Audio | Yes |
| Camera Mount Type | Ceiling mount, wall mount |
| Dimensions (WxDxH) | 6.6 in x 15.9 in x 6.6 in |
| Weight | 7.94 lbs |
| Color | I-PRO White |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 10 x |
| Max Resolution | 3072 x 2304 |
| Frame Rate (max) | 60 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | CMOS - 1/2.8" - 5 MP |
| Minimum Illumination | 0.04 lux - color - F1.6 - 30 IRE - shutter 1/30 sec ¦ 0.06 lux - color - F1.6 - 50 IRE - shutter 1/30 sec ¦ 0.0038 lux - color - F1.6 - 50 IRE - shutter 16/30 sec ¦ 0 lux - B&W - F1.6 - 50 IRE - shutter 1/30 sec |
| Focal Length Control | Motorized zoom |
| Focal Length | 4.7 mm - 47 mm |
| Focus Adjustment | Motorized (min distance 5 ft) |
| Lens Iris | F/1.6 |
| Panning Range (degree) | -180 to +180 |
| Tilting Range (degree) | -100 to +100 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | DC 54 V / PoE++ Class 5 |
| Features | 802.1x authentication, AI Engine, aluminum/polycarbonate housing, Up to 40 m/s wind resistance, Audio Detection, Scene Change Detection (SCD), Video Motion Detection (VMD), ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile G) support, HTTPs encryption, user authentication, digest authentication, host authentication, system log, image transmission log, brute force delay protection, alteration detection, secure boot, signed firmware, up to 14 users, full duplex audio, half duplex audio, Group of Pictures (GOP), controllable frame rate, Smart P-picture control, 4 video streams, Constant Bitrate (CBR), Variable Bitrate (VBR), 8 preset positions, Ambarella CV52 CPU, self return, 16:9 aspect ratio, 4:3 aspect ratio, DORI coverage, 92.4m detect distance (wide), 960.9m detect distance (tele), 18.5m recognize distance (wide), 192.2m recognize distance (tele), 9.2m identify distance (wide), 96.1m identify distance (tele), 36.9m observe distance (wide), 384.4m observe distance (tele), 130km/h max. vehicle speed, License plate recognition (LPR), vehicle speed detection, 30m vehicle detection, Gyroscopic Image Stabilizer, 180° image rotation, 270° image rotation, 90° image rotation, 8 privacy zones, 8 VIQS zones, AI Privacy Guard, AI face detection, AI people detection, AI vehicle detection, AI occupancy detection, AI scene change detection, AI on-site learning, AI processing relay, gunshot detection, AI Sound Classification, glass-break detection, digital noise reduction, 132 dB dynamic range, Adaptive Black Stretch (ABS), AI Analytics, Automatic Gain Control (AGC), Automatic Tracing White (ATW), Backlight Compensation (BLC), fog compensation, Highlight Compensation (HLC), Intelligent Auto (iA), Super Dynamic technology |
| Manufacturer Warranty | 7-year warranty |
| Environmental Parameters (operating) | -22 °F - 140 °F; 10 - 100% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes |
| Audio Formats | G.726, ADPCM, G.711, AAC-LC |
| Form Factor | Bullet |
| Camera Mount Type | Ceiling mount, wall mount |
| Connectivity Technology | Wired |
| Width | 6.6 in |
| Depth | 15.9 in |
| Height | 6.6 in |
| Weight | 7.94 lbs |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line in - 3.5 mm stereo jack ¦ Audio line out - 3.5 mm stereo jack |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | FIPS 140-2 Level 3 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 7 years |
| Miscellaneous | |
| Compliant Standards | IEEE 802.1x, NDAA, IP66, IP67, IK10, UL 62368-1, CAN/CSA-C22.2 No.62368-1, IEC 62368-1, FCC Part 15 A, ICES-003 Class A, cUL, EMC, IEEE 802.3at, IEEE 802.3bt, IEC 60529, UL 50E, NEMA Type 4X, IEC 62262, IEC 60721-3-4 |
| Color | I-PRO White |
| Power | |
| Power Requirements | DC 54 V / PoE++ Class 5 |
| Power Device | 32.4 Watt |
| Software / System Requirements | |
| OS Required | Android, Apple iOS 8.0 or higher |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 10 - 100% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - zoom - outdoor - dust resistant / water resistant / shock resistant / wind resistant / vibration resistant |
| Digital Video Format | H.264, H.265, MJPEG |
| Max Digital Video Resolution | 3072 x 2304 |
| Motion Detection | Yes |
| Digital Zoom | 160 |
| Exposure Range | 1/25 sec - 1/10000 sec |
| Minimum Illumination | 0.04 lux - color - F1.6 - 30 IRE - shutter 1/30 sec ¦ 0.06 lux - color - F1.6 - 50 IRE - shutter 1/30 sec ¦ 0.0038 lux - color - F1.6 - 50 IRE - shutter 16/30 sec ¦ 0 lux - B&W - F1.6 - 50 IRE - shutter 1/30 sec |
| Infrared LEDs | Yes |
| Infrared Distance | 590 ft |
| Video Capture | 3072 x 2304 @ 50/60 fps ¦ 3072 x 1728 @ 50/60 fps ¦ 2560 x 1920 @ 25/30 fps ¦ 2560 x 1440 @ 25/30 fps ¦ 1920 x 1080 @ 25/30 fps ¦ 1280 x 720 @ 25/30 fps ¦ 640 x 360 @ 25/30 fps ¦ 320 x 180 @ 25/30 fps ¦ 3072 x 2304 @ 50/60 fps ¦ 2560 x 1920 @ 50/60 fps ¦ 3072 x 2304 @ 25/30 fps ¦ 2560 x 1920 @ 25/30 fps ¦ 1280 x 960 @ 25/30 fps ¦ 800 x 600 @ 25/30 fps ¦ 640 x 480 @ 25/30 fps ¦ 400 x 300 @ 25/30 fps ¦ 320 x 240 @ 25/30 fps |
| Supported Image Formats | JPEG |
| Features | 802.1x authentication, AI Engine, aluminum/polycarbonate housing, Up to 40 m/s wind resistance, Audio Detection, Scene Change Detection (SCD), Video Motion Detection (VMD), ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile G) support, HTTPs encryption, user authentication, digest authentication, host authentication, system log, image transmission log, brute force delay protection, alteration detection, secure boot, signed firmware, up to 14 users, full duplex audio, half duplex audio, Group of Pictures (GOP), controllable frame rate, Smart P-picture control, 4 video streams, Constant Bitrate (CBR), Variable Bitrate (VBR), 8 preset positions, Ambarella CV52 CPU, self return, 16:9 aspect ratio, 4:3 aspect ratio, DORI coverage, 92.4m detect distance (wide), 960.9m detect distance (tele), 18.5m recognize distance (wide), 192.2m recognize distance (tele), 9.2m identify distance (wide), 96.1m identify distance (tele), 36.9m observe distance (wide), 384.4m observe distance (tele), 130km/h max. vehicle speed, License plate recognition (LPR), vehicle speed detection, 30m vehicle detection, Gyroscopic Image Stabilizer, 180° image rotation, 270° image rotation, 90° image rotation, 8 privacy zones, 8 VIQS zones, AI Privacy Guard, AI face detection, AI people detection, AI vehicle detection, AI occupancy detection, AI scene change detection, AI on-site learning, AI processing relay, gunshot detection, AI Sound Classification, glass-break detection, digital noise reduction, 132 dB dynamic range, Adaptive Black Stretch (ABS), AI Analytics, Automatic Gain Control (AGC), Automatic Tracing White (ATW), Backlight Compensation (BLC), fog compensation, Highlight Compensation (HLC), Intelligent Auto (iA), Super Dynamic technology |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 10 x |
| Focal Length | 4.7 mm - 47 mm |
| Lens Iris | F/1.6 |
| Focus Adjustment | Motorized |
| Min Focus Distance | 5 ft |
| Horizontal Field of View (degree) | 6.1 - 58 |
| Vertical Field of View (degree) | 3.4 - 45 |
| Image Sensor | |
| Type | 5 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv6, TCP/IP, UDP/IP, HTTP, HTTPS, SSL, SMTP, DNS, NTP, SNMP 1, DHCPv6, RTP, MLD, ICMP, ARP, DiffServ, FTP, SFTP, LLDP, MQTT, IPv4, RTSP, DHCP, DDNS, UPnP, IGMP, SRTP, TLS, RTCP, SNMP 2, SNMP 3 |
| Alarm Inputs Qty | 3 |
| Alarm Outputs Qty | 2 |
| Panning | |
| Range (degree) | -180 to +180 |
| Internet of Things (IoT) | |
| Supported Host Device Platform | Android, iOS |
| Tilting | |
| Range (degree) | -100 to +100 |
