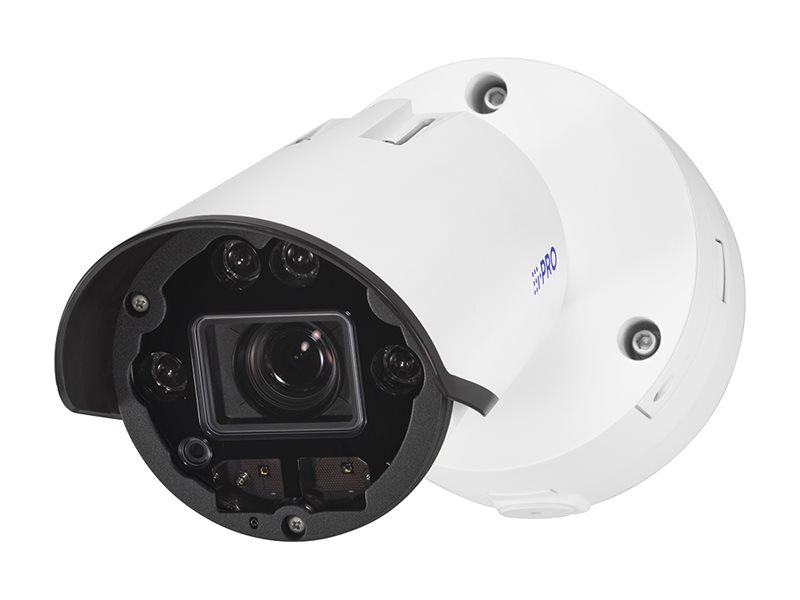

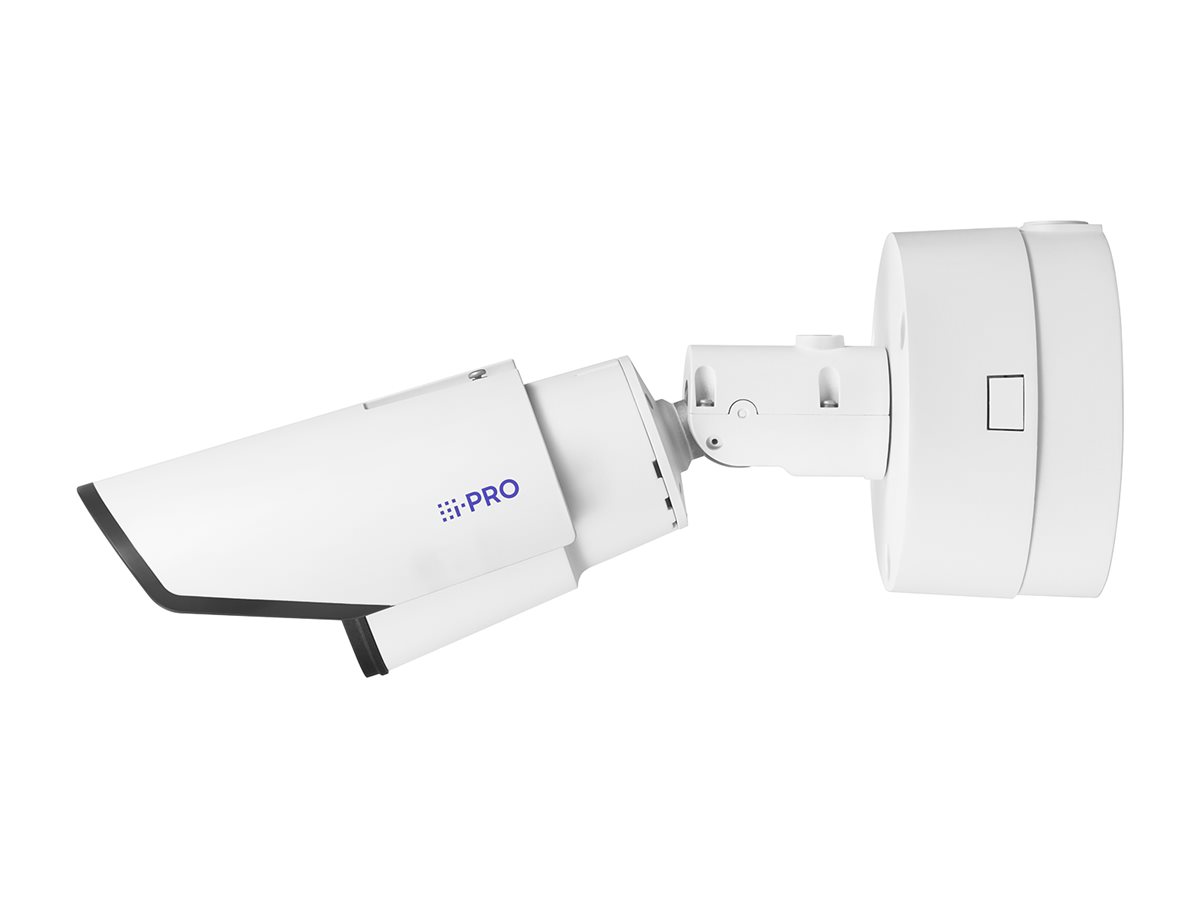

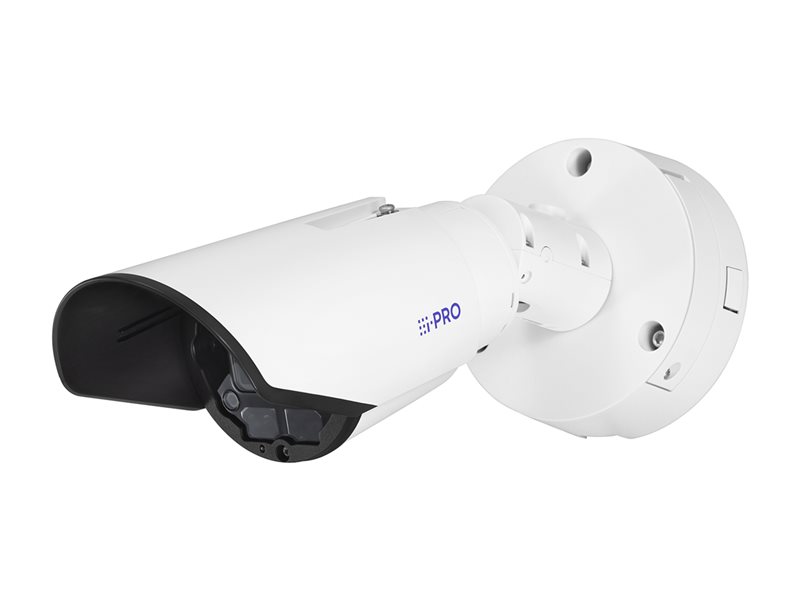

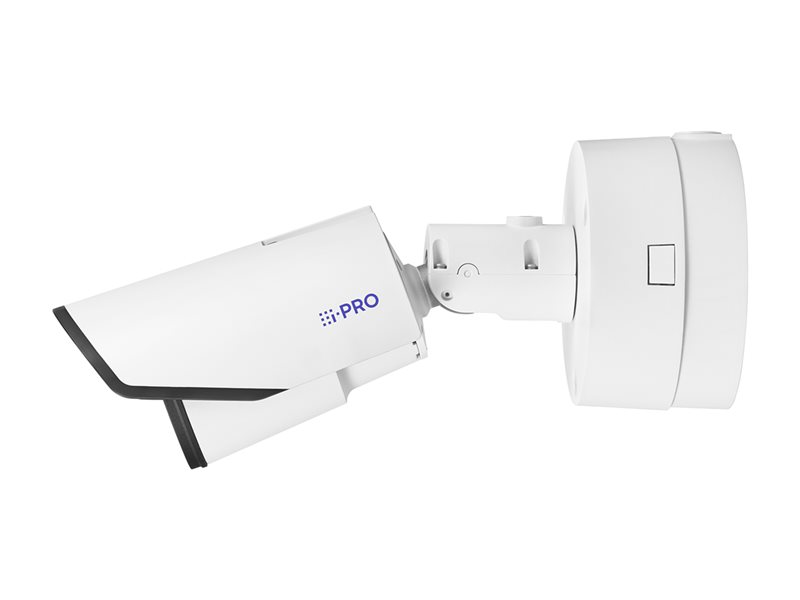

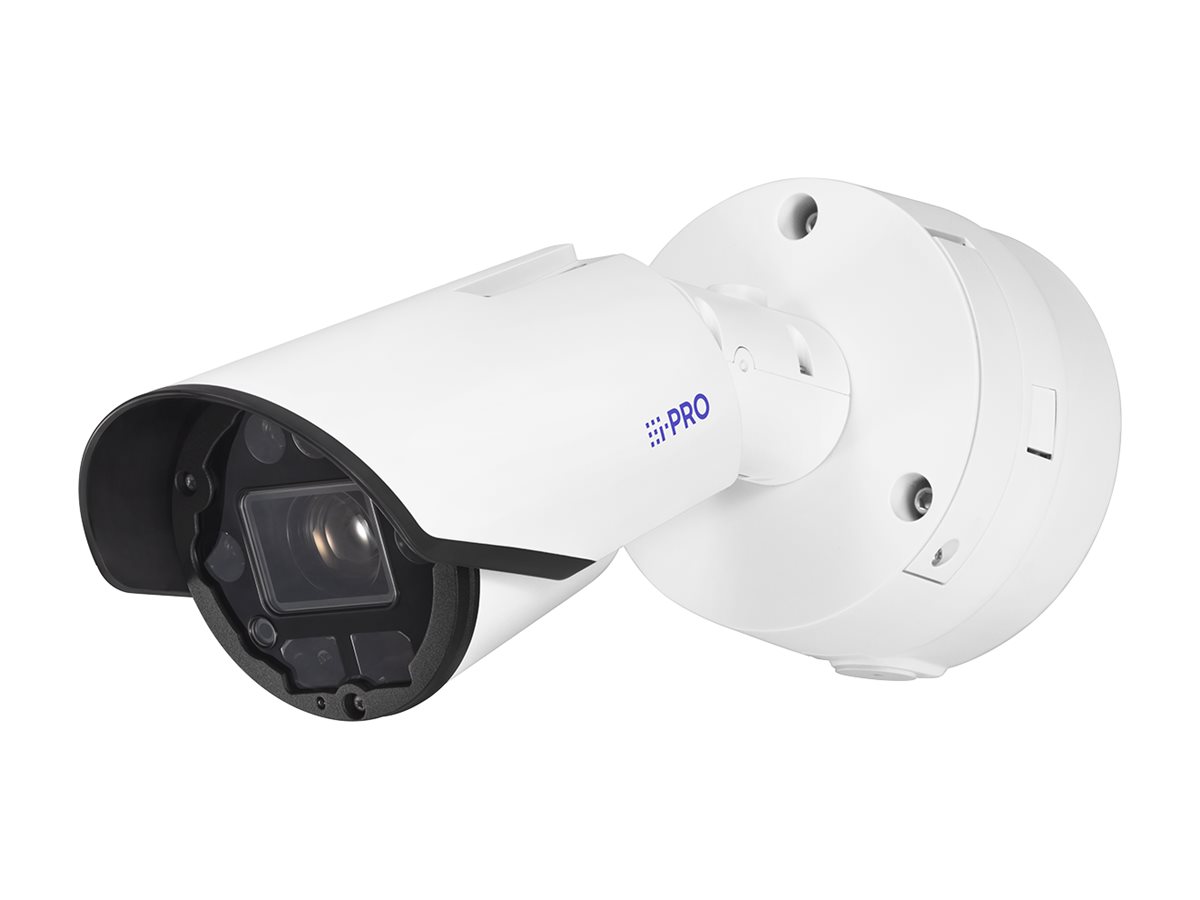

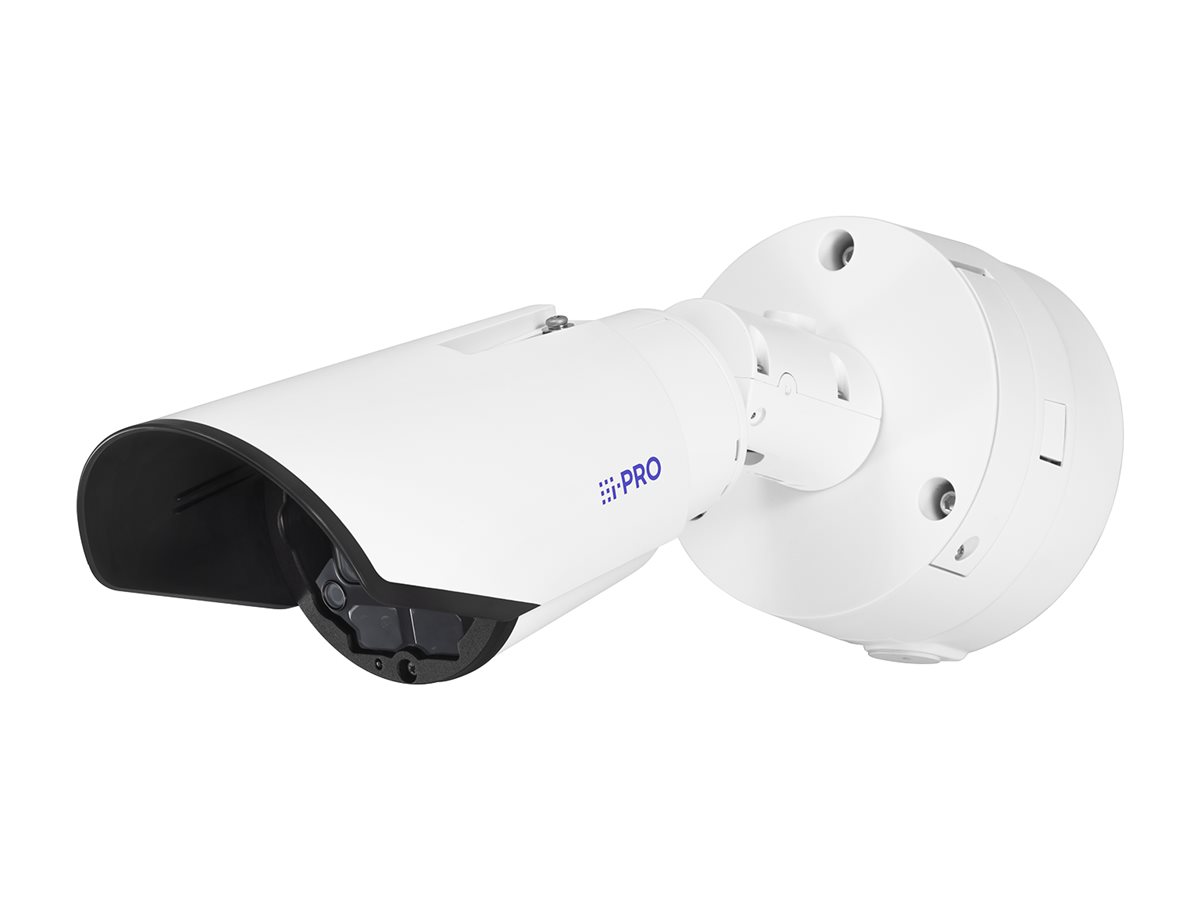

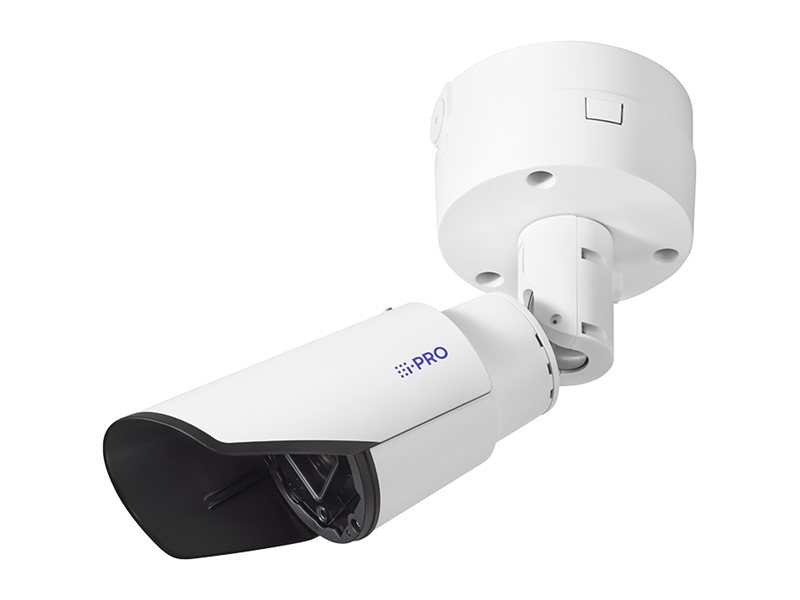

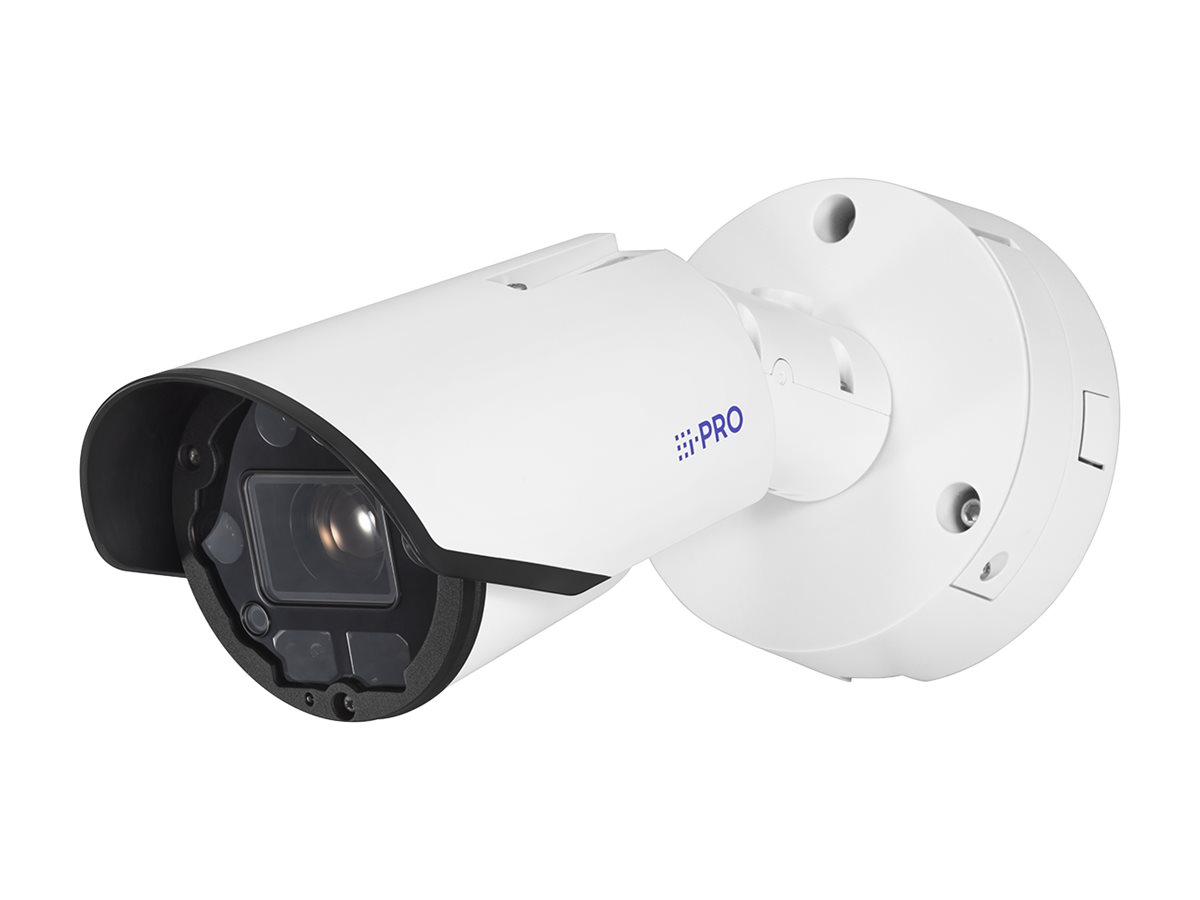

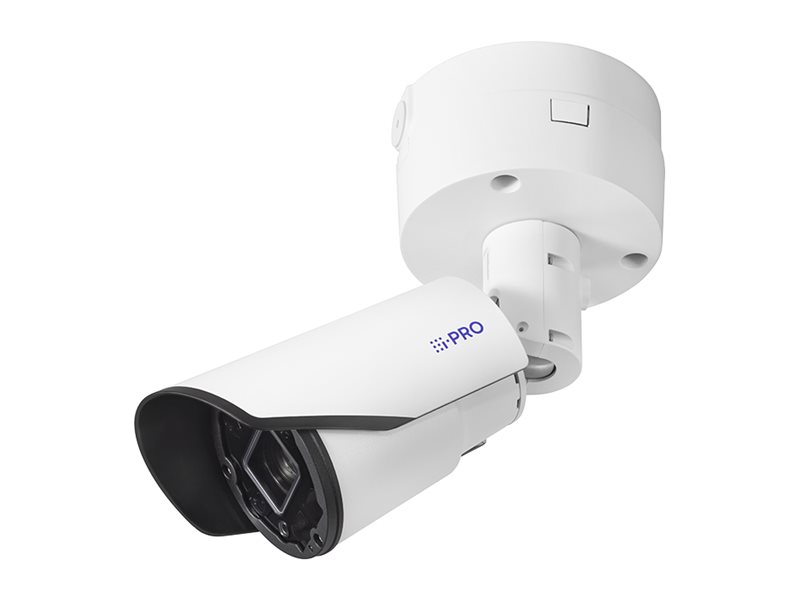

i-PRO Americas - i-PRO WV-X15301-Z1L
Network surveillance camera - zoom - bullet - outdoor - dust resistant / water resistant / shock resistant / wind resistant / vibration resistance - color (Day&Night) - 2 MP - 2048 x 1536 - motorized - audio - LAN 10/100 - H.264, H.265, MJPEG - DC 54 V / PoE++ Class 5
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | i-PRO WV-X15301-Z1L - network surveillance camera - bullet |
| Device Type | Network surveillance camera - zoom - bullet - outdoor - dust resistant / water resistant / shock resistant / wind resistant / vibration resistance |
| Audio | Yes: no microphone |
| Dimensions (WxDxH) | 6.6 in x 18 in x 6.6 in |
| Weight | 7.94 lbs |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 10 x |
| Max Resolution | 2048 x 1536 |
| Frame Rate (max) | 60 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | CMOS - 1/2.8" - 2 MP |
| Minimum Illumination | 0.011 lux - color - F1.6 - 30 IRE - shutter 1/30 sec ¦ 0.015 lux - color - F1.6 - 50 IRE - shutter 1/30 sec ¦ 0.001 lux - color - F1.6 - 50 IRE - shutter 16/30 sec ¦ 0 lux - B&W - F1.6 - 50 IRE - shutter 1/30 sec / infrared LEDs on ¦ 0.006 lux - B&W - F1.6 - 50 IRE - shutter 1/30 sec ¦ 0.0004 lux - B&W - F1.6 - 50 IRE - shutter 16/30 sec |
| Focal Length Control | Motorized zoom |
| Focal Length | 4.7 mm - 47 mm |
| Focus Adjustment | Motorized (min distance 5 ft) |
| Lens Iris | F/1.6-3.0 |
| Panning Range (degree) | -180 to +180 |
| Tilting Range (degree) | 0 to 100 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | DC 54 V / PoE++ Class 5 |
| Features | Up to 9 Edge AI analytic apps, AI Engine, Ambarella CV52 CPU, 802.1x authentication, Up to 40 m/s wind resistance, 144 dB dynamic range, Adaptive Black Stretch (ABS), AI face detection, AI people detection, AI Privacy Guard, AI Sound Classification, AI vehicle detection, AI Video Motion Detection (AI-VMD), auto ICR, Automatic Gain Control (AGC), Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), digital noise reduction, fog compensation, glass-break detection, gunshot detection, Highlight Compensation (HLC), Intelligent Auto (iA), Super Dynamic technology, Video Motion Detection (VMD), AI occupancy detection, AI scene change detection, AI on-site learning, AI processing relay, License Plate Recognition, 8 privacy zones, 8 VIQS zones, 0 ° / 90 ° / 180 ° / 270 ° image rotation, Gyroscopic Image Stabilizer, DORI coverage, 63.7m detect distance (wide), 666m detect distance (tele), 25.5m observe distance (wide), 266.4m observe distance (tele), 12.7m recognize distance (wide), 133.2m recognize distance (tele), 6.4m identify distance (wide), 66.6m identify distance (tele), 8 preset positions, Auto VIQS, Device Certificate GlobalSign pre-installed, Group of Pictures (GOP), preset sequence, self return, Smart P-picture control, up to 14 users, user authentication, digest authentication, host authentication, system log, image transmission log, brute force delay protection, alteration detection, secure boot, signed firmware, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, audio alarm, e-mail alerts, FTP alerts, 4 video streams, mosaic privacy mask, Constant Bitrate (CBR), Variable Bitrate (VBR) |
| Manufacturer Warranty | 7-year warranty |
| Environmental Parameters (operating) | -40 °F - 140 °F; 10 - 100% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: no microphone |
| Audio Formats | G.726, ADPCM, G.711, AAC-LC |
| Form Factor | Bullet |
| Connectivity Technology | Wired |
| Width | 6.6 in |
| Depth | 18 in |
| Height | 6.6 in |
| Weight | 7.94 lbs |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line in - 3.5 mm stereo jack ¦ Audio line out - 3.5 mm stereo jack |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | FIPS 140-2 Level 3 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 7 years |
| Miscellaneous | |
| Compliant Standards | IP66, IP67, IK10, NDAA, IEEE 802.1x, UL 50E Type 4X, IEC 60529, IEC 62262, IEC 60721-3-4, ICES-003 Class A, FCC Part 15 A, UL 62368-1, C-UL, CSA C22.2 No.62368-1, IEC 62368-1, IEEE 802.3at, IEEE 802.3bt |
| Power | |
| Power Requirements | DC 54 V / PoE++ Class 5 |
| Power Device | 32.4 Watt |
| Software / System Requirements | |
| Software Included | VaxALPR (30 days trial) |
| OS Required | Android, Apple iOS 8.0 or higher |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 10 - 100% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - zoom - outdoor - dust resistant / water resistant / shock resistant / wind resistant / vibration resistance |
| Digital Video Format | H.264, H.265, MJPEG |
| Max Digital Video Resolution | 2048 x 1536 |
| Motion Detection | Yes |
| Digital Zoom | 160 |
| Exposure Range | 1/25 sec - 1/10000 sec |
| Minimum Illumination | 0.011 lux - color - F1.6 - 30 IRE - shutter 1/30 sec ¦ 0.015 lux - color - F1.6 - 50 IRE - shutter 1/30 sec ¦ 0.001 lux - color - F1.6 - 50 IRE - shutter 16/30 sec ¦ 0 lux - B&W - F1.6 - 50 IRE - shutter 1/30 sec / infrared LEDs on ¦ 0.006 lux - B&W - F1.6 - 50 IRE - shutter 1/30 sec ¦ 0.0004 lux - B&W - F1.6 - 50 IRE - shutter 16/30 sec |
| Infrared LEDs | Yes |
| Infrared Distance | 820 ft |
| Video Capture | 1920 x 1080 @ 50/60 fps ¦ 1280 x 720 @ 50/60 fps ¦ 640 x 360 @ 50/60 fps ¦ 320 x 180 @ 50/60 fps ¦ 1920 x 1080 @ 25/30 fps ¦ 1280 x 720 @ 25/30 fps ¦ 640 x 360 @ 25/30 fps ¦ 320 x 180 @ 25/30 fps ¦ 2048 x 1536 @ 50/60 fps ¦ 1280 x 960 @ 50/60 fps ¦ 640 x 480 @ 50/60 fps ¦ 320 x 240 @ 50/60 fps ¦ 2048 x 1536 @ 25/30 fps ¦ 1280 x 960 @ 25/30 fps ¦ 640 x 480 @ 25/30 fps ¦ 320 x 240 @ 25/30 fps |
| Supported Image Formats | JPEG |
| Features | Up to 9 Edge AI analytic apps, AI Engine, Ambarella CV52 CPU, 802.1x authentication, Up to 40 m/s wind resistance, 144 dB dynamic range, Adaptive Black Stretch (ABS), AI face detection, AI people detection, AI Privacy Guard, AI Sound Classification, AI vehicle detection, AI Video Motion Detection (AI-VMD), auto ICR, Automatic Gain Control (AGC), Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), digital noise reduction, fog compensation, glass-break detection, gunshot detection, Highlight Compensation (HLC), Intelligent Auto (iA), Super Dynamic technology, Video Motion Detection (VMD), AI occupancy detection, AI scene change detection, AI on-site learning, AI processing relay, License Plate Recognition, 8 privacy zones, 8 VIQS zones, 0 ° / 90 ° / 180 ° / 270 ° image rotation, Gyroscopic Image Stabilizer, DORI coverage, 63.7m detect distance (wide), 666m detect distance (tele), 25.5m observe distance (wide), 266.4m observe distance (tele), 12.7m recognize distance (wide), 133.2m recognize distance (tele), 6.4m identify distance (wide), 66.6m identify distance (tele), 8 preset positions, Auto VIQS, Device Certificate GlobalSign pre-installed, Group of Pictures (GOP), preset sequence, self return, Smart P-picture control, up to 14 users, user authentication, digest authentication, host authentication, system log, image transmission log, brute force delay protection, alteration detection, secure boot, signed firmware, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, audio alarm, e-mail alerts, FTP alerts, 4 video streams, mosaic privacy mask, Constant Bitrate (CBR), Variable Bitrate (VBR) |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 10 x |
| Focal Length | 4.7 mm - 47 mm |
| Lens Iris | F/1.6-3.0 |
| Focus Adjustment | Motorized |
| Min Focus Distance | 5 ft |
| Horizontal Field of View (degree) | 5 - 62 |
| Vertical Field of View (degree) | 3.7 - 37 |
| Image Sensor | |
| Type | 2 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv6, TCP/IP, UDP/IP, HTTP, HTTPS, SSL, SMTP, DNS, NTP, SNMP 1, DHCPv6, RTP, MLD, ICMP, ARP, DiffServ, FTP, SFTP, LLDP, MQTT, IPv4, RTSP, DHCP, DDNS, UPnP, IGMP, SRTP, TLS, RTCP, SNMP 2, SNMP 3 |
| Alarm Inputs Qty | 3 |
| Panning | |
| Range (degree) | -180 to +180 |
| Internet of Things (IoT) | |
| Supported Host Device Platform | Android, iOS |
| Tilting | |
| Range (degree) | 0 to 100 |
