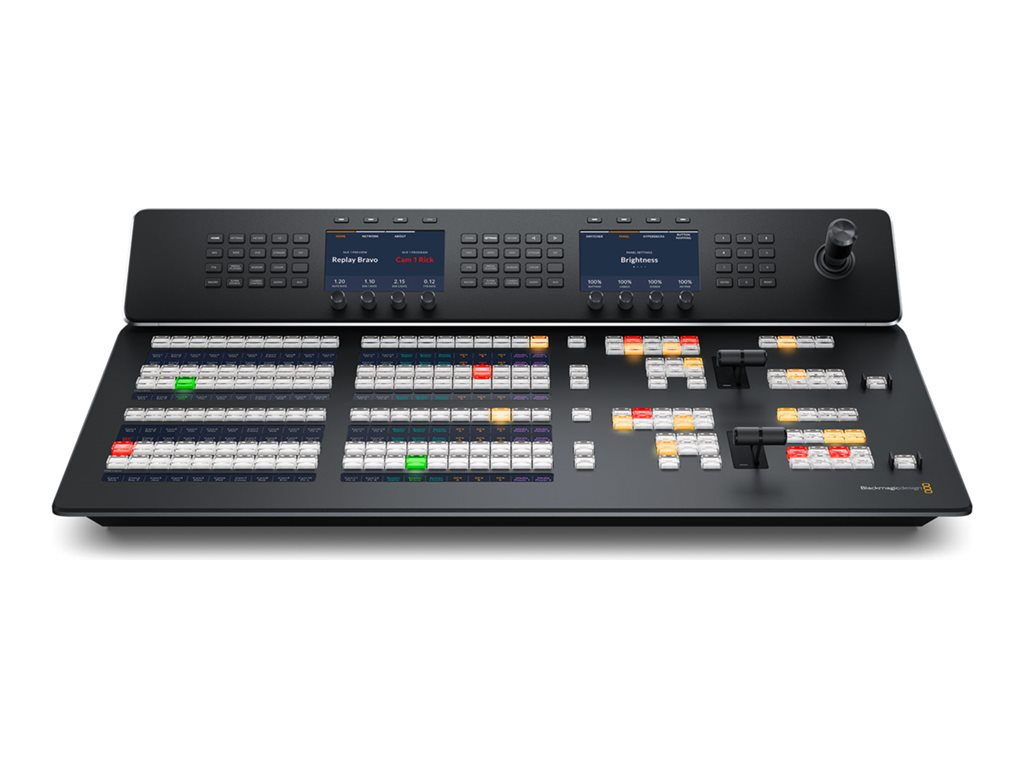

Sole Source Technology - Blackmagic ATEM 2 M/E Advanced Panel 20
Control panel
Sole Source Technology
SWPANELADV2ME20-SS
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Blackmagic ATEM 2 M/E Advanced Panel 20 - control panel |
| Type | Control panel |
| Dimensions (WxDxH) | 28.5 in - 19 in - 6.5 in |
| Weight | 24.25 lbs |
| Controllers | Joystick, fader bar |
| Video Effects | DSK, Cut |
| Display | 2 x LCD display |
| General | |
| Type | Control panel |
| Width | 28.5 in |
| Depth | 19 in |
| Height | 6.5 in |
| Weight | 24.25 lbs |
| Power | |
| Voltage Required | AC 120/230 V AC 100-240 V |
| Power Consumption | 100 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Display | |
| Type | 2 x LCD display |
| Terminals | |
| Terminals | 4 x network - RJ-45 - with loop through ¦ 1 x USB-C - USB-C |
| Video Control | |
| Controllers | Joystick, fader bar |
| Video Effects | |
| Effects Type | DSK, Cut |
| Video System | |
| Features | Redundant power supply |
