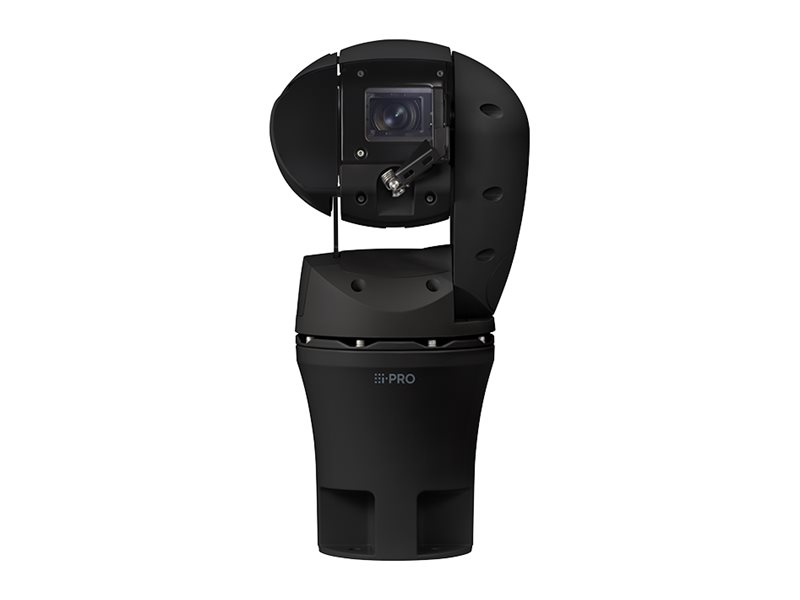

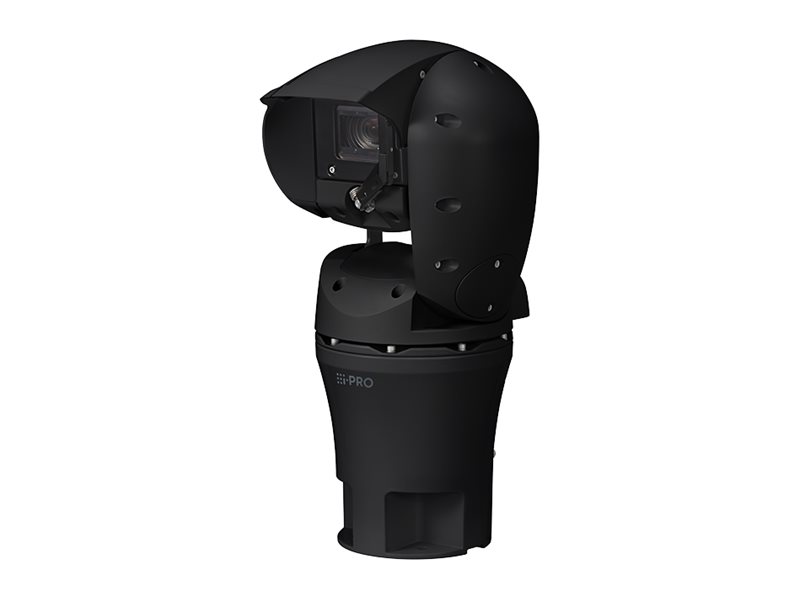

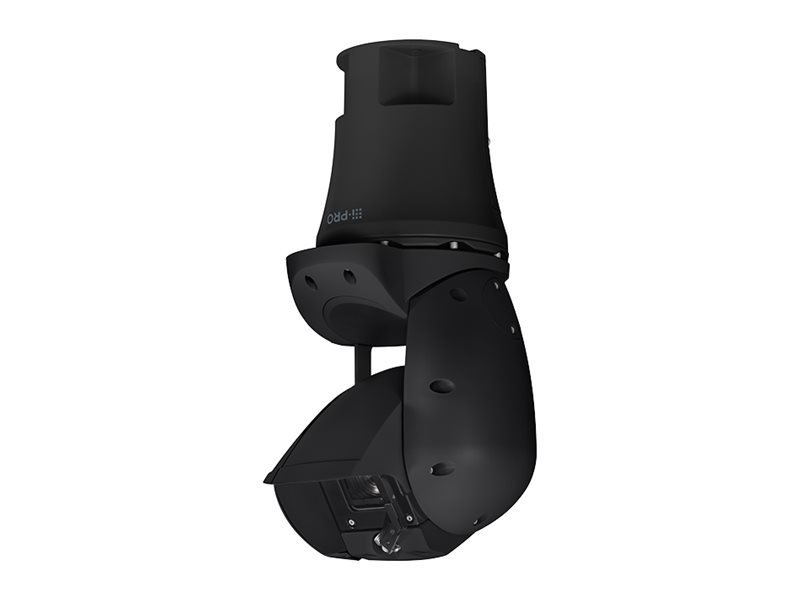

i-PRO Americas - i-PRO WV-X67710-Z3-1
Network surveillance camera - PTZ - turret - tamper-resistant / water resistant / dust resistant / wind resistant / shock resistant - color (Day&Night) - 3840 x 2160 - motorized - audio - LAN 10/100 - H.265, H.264, MJPEG - DC 24 V / AC 24 V / PoE++ Class 8
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | i-PRO WV-X67710-Z3-1 - network surveillance camera - turret |
| Device Type | Network surveillance camera - pan / tilt / zoom - turret - tamper-resistant / water resistant / dust resistant / wind resistant / shock resistant |
| Audio | Yes |
| Dimensions (WxDxH) | 8.9 in x 10.5 in x 17.7 in |
| Weight | 17.86 lbs |
| Color | Black, Munsell N1 |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 30 x |
| Max Resolution | 3840 x 2160 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Video Modes | 4K, 1080p, 720p |
| Optical Sensor Type | CMOS - 1/2.8" |
| Minimum Illumination | 0.13 lux - color - F1.8 - 30 IRE - shutter 1/30 sec / AGC on ¦ 0.19 lux - color - F1.8 - 50 IRE - shutter 1/30 sec / AGC on ¦ 0.1 lux - B&W - F1.8 - 50 IRE - shutter 1/30 sec / AGC on |
| Focal Length Control | Motorized zoom |
| Focal Length | 4.5 mm - 135 mm |
| Focus Adjustment | (min distance 10 ft) |
| Lens Iris | F/1.8 |
| Panning Range (degree) | 360 |
| Tilting Range (degree) | -90 to +90 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | DC 24 V / AC 24 V / PoE++ Class 8 |
| Features | Edge AI, Intelligent Auto Tracking, up to 270km/h wind resistance, auto white balance, Automatic Tracing White (ATW), Super Dynamic technology, 132 dB dynamic range, Adaptive Black Stretch (ABS), Backlight Compensation (BLC), Highlight Compensation (HLC), fog compensation, 32 privacy zones, 8 VIQS zones, AI face detection, AI occupancy detection, AI people detection, AI Privacy Guard, AI Sound Classification, AI vehicle detection, Audio Detection, auto ICR, Automatic Gain Control (AGC), digital noise reduction, image stabilizer, Scene Change Detection (SCD), Video Motion Detection (VMD), DORI coverage, Ambarella CV22 CPU, 256 preset positions, self return, Variable Bitrate (VBR), 4 video streams, Group of Pictures (GOP), Variable Image Quality on Specified area (VIQS), 14 access users, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, die-cast housing |
| Environmental Parameters (operating) | -58 °F - 140 °F; 10 - 100% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes |
| Audio Formats | G.726, G.711, ADPCM, AAC-LC |
| Form Factor | Turret |
| Connectivity Technology | Wired |
| Width | 8.9 in |
| Depth | 10.5 in |
| Height | 17.7 in |
| Weight | 17.86 lbs |
| Expansion / Connectivity | |
| Ports | LAN - RJ-45 ¦ Audio line in - bare wire ¦ Audio line out ¦ Relay |
| Encryption Algorithm | FIPS 140-2 Level 3 |
| Miscellaneous | |
| Compliant Standards | IP66, IP68, IK10, NDAA, UL 62368-1, C-UL, CAN/CSA 62368-1, IEC 62368-1, FCC Part 15 A, ICES-003 Class A, EN 55032, EN 55035, UL 50E Type 4X, UL 50E Type 6P, NEMA Type 4X, NEMA Type 6P, IEC 60529, IEC 62262 |
| Color | Black, Munsell N1 |
| Power | |
| Power Requirements | DC 24 V / AC 24 V / PoE++ Class 8 |
| Power Device | 61 Watt |
| Software / System Requirements | |
| OS Required | Apple iOS 8 or later, Android |
| Environmental Parameters | |
| Min Operating Temperature | -58 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 10 - 100% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt / zoom - tamper-resistant / water resistant / dust resistant / wind resistant / shock resistant |
| Digital Video Format | H.265, H.264, MJPEG |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Video Modes | 4K, 1080p, 720p |
| Digital Zoom | 480 |
| Exposure Range | 1/25 sec - 1/10000 sec |
| Minimum Illumination | 0.13 lux - color - F1.8 - 30 IRE - shutter 1/30 sec / AGC on ¦ 0.19 lux - color - F1.8 - 50 IRE - shutter 1/30 sec / AGC on ¦ 0.1 lux - B&W - F1.8 - 50 IRE - shutter 1/30 sec / AGC on |
| Digital Video Capture Resolution | 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180 |
| Frame Rate (max) | 30 frames per second |
| Supported Image Formats | JPEG |
| Features | Edge AI, Intelligent Auto Tracking, up to 270km/h wind resistance, auto white balance, Automatic Tracing White (ATW), Super Dynamic technology, 132 dB dynamic range, Adaptive Black Stretch (ABS), Backlight Compensation (BLC), Highlight Compensation (HLC), fog compensation, 32 privacy zones, 8 VIQS zones, AI face detection, AI occupancy detection, AI people detection, AI Privacy Guard, AI Sound Classification, AI vehicle detection, Audio Detection, auto ICR, Automatic Gain Control (AGC), digital noise reduction, image stabilizer, Scene Change Detection (SCD), Video Motion Detection (VMD), DORI coverage, Ambarella CV22 CPU, 256 preset positions, self return, Variable Bitrate (VBR), 4 video streams, Group of Pictures (GOP), Variable Image Quality on Specified area (VIQS), 14 access users, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, die-cast housing |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 30 x |
| Focal Length | 4.5 mm - 135 mm |
| Lens Iris | F/1.8 |
| Min Focus Distance | 10 ft |
| Horizontal Field of View (degree) | 2.5 - 62 |
| Vertical Field of View (degree) | 1.4 - 37 |
| Image Sensor | |
| Type | CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv6, TCP/IP, UDP/IP, HTTP, HTTPS, SSL, TLS, SMTP, DNS, NTP, SNMP 1, SNMP 2, SNMP 3, DHCPv6, RTP, MLD, ICMP, ARP, FTP, SFTP, LLDP, MQTT, IPv4, NTCIP, SRTP, IGMP, UPnP, DDNS |
| Alarm Inputs Qty | 3 |
| Alarm Outputs Qty | 1 |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 200 |
| Tilting | |
| Range (degree) | -90 to +90 |
| Speed (degree/sec) | Up to 200 |
