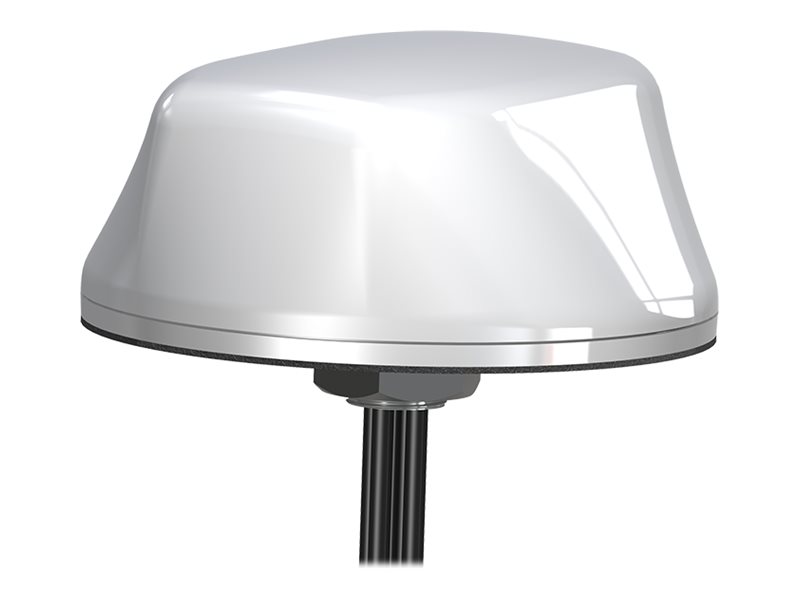

Mobile Mark - Mobile Mark LTMWG9 Series LTMW940
Antenna - radome - cellular, navigation - surface mountable, stud mounting
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | Mobile Mark LTMWG9 Series LTMW940 - antenna |
| Device Type | Antenna |
| Form Factor | Radome |
| Intended For | Cellular, navigation |
| Antenna Placing / Mounting | Surface mountable, stud mounting |
| Dimensions (WxDxH) | 5.5 in x 5.5 in x 2.4 in |
| Color | White |
| Compatibility | GNSS, 5G, LTE |
| Frequency Range | 1561 MHz, 1575 MHz, 1602 MHz, 617 - 960 MHz, 1710 - 7200 MHz |
| Features | IP67, IP69K, RoHS, corrosion-resistant, 4x4 MiMo, MIL-STD 810G, VSWR < 2.5:1, right-hand circular polarization (RHCP) |
| General | |
| Product Type | Antenna |
| Form Factor | Radome |
| Intended For | Cellular, navigation |
| Antenna Placing / Mounting | Surface mountable, stud mounting |
| Width | 5.5 in |
| Depth | 5.5 in |
| Height | 2.4 in |
| Color | White |
| Product Material | Acrylonitrile styrene acrylate (ASA), UV-stable plastic, aluminum base |
| Miscellaneous | |
| Cables Included | Antenna cable - 20 ft |
| Antenna | |
| Compatibility | GNSS, 5G, LTE |
| Frequency Range | 1561 MHz, 1575 MHz, 1602 MHz, 617 - 960 MHz, 1710 - 7200 MHz |
| Impedance | 50 Ohm |
| Max Power | 10 Watt |
| Features | IP67, IP69K, RoHS, corrosion-resistant, 4x4 MiMo, MIL-STD 810G, VSWR < 2.5:1, right-hand circular polarization (RHCP) |
| Connector Provided | |
| Type | 4 x antenna - SMA (plug) ¦ GPS antenna - SMA (plug) |
