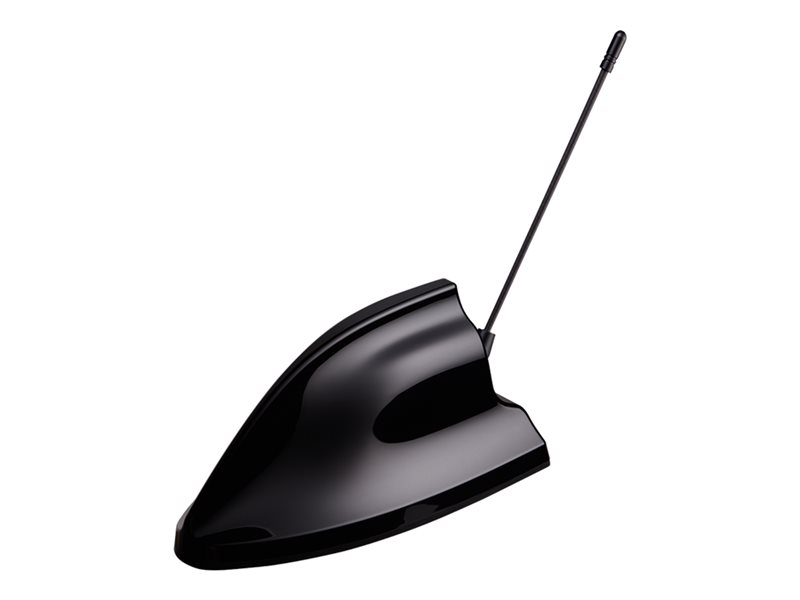

Taoglas - Taoglas Raptor III MA1290
Antenna - shark fin - cellular, navigation, Wi-Fi, radio - 32 dBi - vehicle, roof-mountable
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | Taoglas Raptor III MA1290 - antenna |
| Device Type | Antenna |
| Form Factor | Shark fin |
| Intended For | Cellular, navigation, Wi-Fi, radio |
| Antenna Placing / Mounting | Vehicle, roof-mountable |
| Dimensions (WxDxH) | 3.7 in x 7.5 in x 3.6 in |
| Weight | 32.27 oz |
| Compatibility | GPS, GLONASS, BeiDou, GALILEO, 5G, 4G, AM, FM, VHF, UHF, LMR |
| Frequency Range | 130 - 150 MHz, 350 - 470 MHz, 700 - 900 MHz, 2.4 GHz, 5.8 GHz, 380 - 470 MHz, 600 - 6000 MHz |
| Gain | 32 dBi |
| Features | MIMO technology, UV resistant, impact resistant, screw mount, right-hand circular polarization (RHCP), IP67, RoHS |
| General | |
| Product Type | Antenna |
| Form Factor | Shark fin |
| Intended For | Cellular, navigation, Wi-Fi, radio |
| Antenna Placing / Mounting | Vehicle, roof-mountable |
| Width | 3.7 in |
| Depth | 7.5 in |
| Height | 3.6 in |
| Weight | 32.27 oz |
| Product Material | PC plastic, steel |
| Miscellaneous | |
| Cables Included | Antenna cable - 10 ft |
| Included Accessories | 2 whip antennas |
| Antenna | |
| Compatibility | GPS, GLONASS, BeiDou, GALILEO, 5G, 4G, AM, FM, VHF, UHF, LMR |
| Frequency Range | 130 - 150 MHz, 350 - 470 MHz, 700 - 900 MHz, 2.4 GHz, 5.8 GHz, 380 - 470 MHz, 600 - 6000 MHz |
| Impedance | 50 Ohm |
| Gain | 32 dBi |
| Features | MIMO technology, UV resistant, impact resistant, screw mount, right-hand circular polarization (RHCP), IP67, RoHS |
| Connector Provided | |
| Type | 1 x antenna - SMA (male) ¦ 1 x Wi-Fi antenna - RP-SMA (male) ¦ 1 x UHF input - mini-UHF (male) |
