Tabletop kit - keypad - EU, 12-button - 2 gangs - wired - serial RS-232/10/100 Ethernet - white


Price: $880.23

Total Available: 0

Product Description

Additional Details

What's Included


Main Specifications

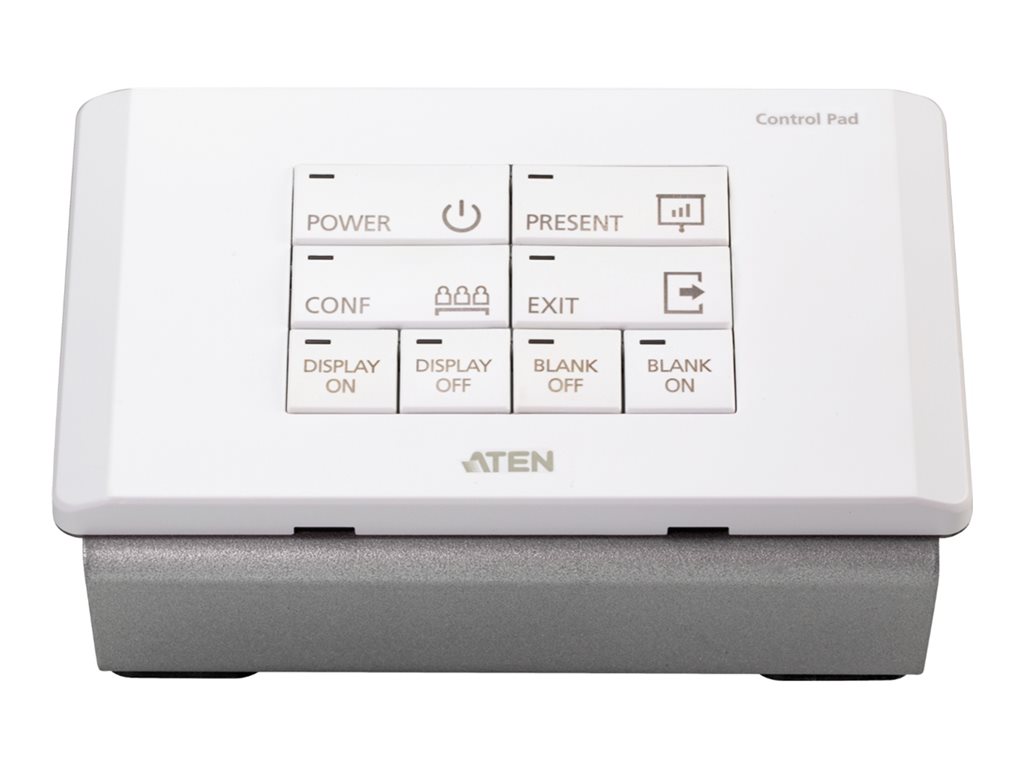

Product Description ATEN VK0200 - tabletop kit - keypad - EU, 12-button - white
Product Type Keypad
Gangs Qty 2
Placing / Mounting Wall-mounting, tabletop-mounting
Power Source Power adapter, PoE
Connectivity Wired - serial RS-232/10/100 Ethernet
Input Type 12 buttons - keypad
Color White
Localization Europe
Manufacturer Warranty 3-year warranty
Dimensions (WxDxH) 5.8 in x 1.9 in x 3.3 in
Product Type Keypad
Gangs Qty 2
Power Source Power adapter, PoE
Placing / Mounting Wall-mounting, tabletop-mounting
Connectivity Technology Wired - Ethernet, Fast Ethernet, RS-232
Interfaces Details LAN/power ¦ Digital input ¦ 2 x relay ¦ 2 x serial (RS-232)
Features Engravable buttons, LED indicators, customizable button combinations, PoE, DHCP support, ARP support, SSH support, reset button, ONVIF support, File back up, Internet Control Message Protocol (ICMP), PJLink compatible, controller ID switch (16-segment), WebSockets support, HTTP support, UDP support, HTTPS support, web GUI management portal, TCP/IP support, supports native KNX IP, Telnet support
Included Accessories Faceplate, button pack, 6 terminal blocks
Product Material Plastic
Color White
Localization Europe
Voltage Required DC 5 V
Warranty 3-year warranty
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 0 - 80% RH (non-condensing)
Dimensions & Weight
Width 5.8 in
Depth 1.9 in
Height 3.3 in
Weight 6.7 oz
Dimensions & Weight Details Faceplate: 6 in x 0.4 in x 3.4 in
Control Unit
Input Type Keypad
Buttons Qty 12
