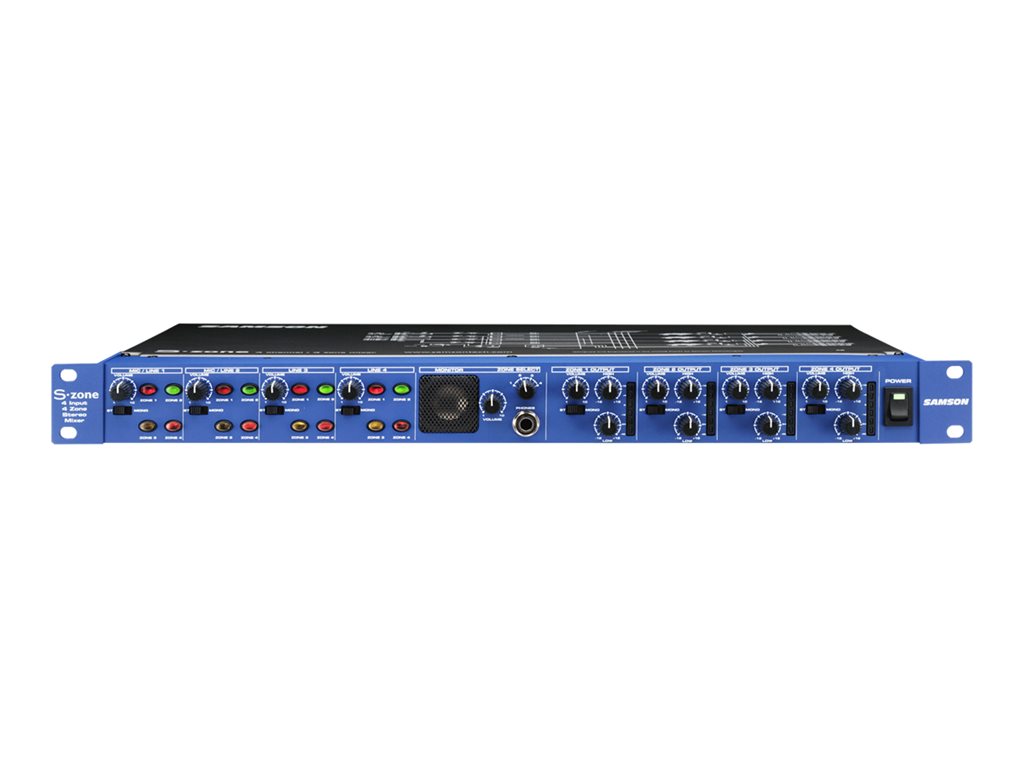

Samson - Samson S-Zone
Analog mixer - 4-channel - rack-mountable
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | Samson S-Zone analog mixer - 4-channel |
| Type | Analog mixer - 4-channel - rack-mountable |
| Mic Phantom Power | 15 V |
| Headphones Output | Yes |
| Mic Channels | 2 stereo |
| Line Channels | 4 stereo |
| Dimensions (WxDxH) | 19 in - 7.5 in - 1.7 in |
| Weight | 5.09 lbs |
| General | |
| Type | Analog mixer |
| Power | |
| Frequency | 50/60 Hz |
| Power Consumption | 5 Watt |
| Connections | |
| Connector Type | 1 x headphones (phone stereo 6.3 mm) - front ¦ 2 x microphone (Euroblock terminal) - rear ¦ 4 x audio line-in (Euroblock terminal) - rear ¦ 4 x balanced audio output (Euroblock terminal) - rear ¦ 4 x remote control (Euroblock terminal) - rear |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 7.5 in |
| Height | 1.7 in |
| Weight | 5.09 lbs |
| Mixer | |
| Rack Mount | Rack-mountable |
| Channels Qty (total) | 4-channel |
| Mic Phantom Power | 15 V |
| Control Types | Knobs |
| Headphones Output | Yes |
| Features | Headphone output volume control, four zone capability, built-in speaker |
| Channel Description | |
| Mic Channels | 2 stereo |
| Mic Channels Connector | Terminal block (clamp) |
| Line Channels | 4 stereo |
| Line Channels Connector | Terminal block (clamp) |
| EQ Band Qty | 2 |
