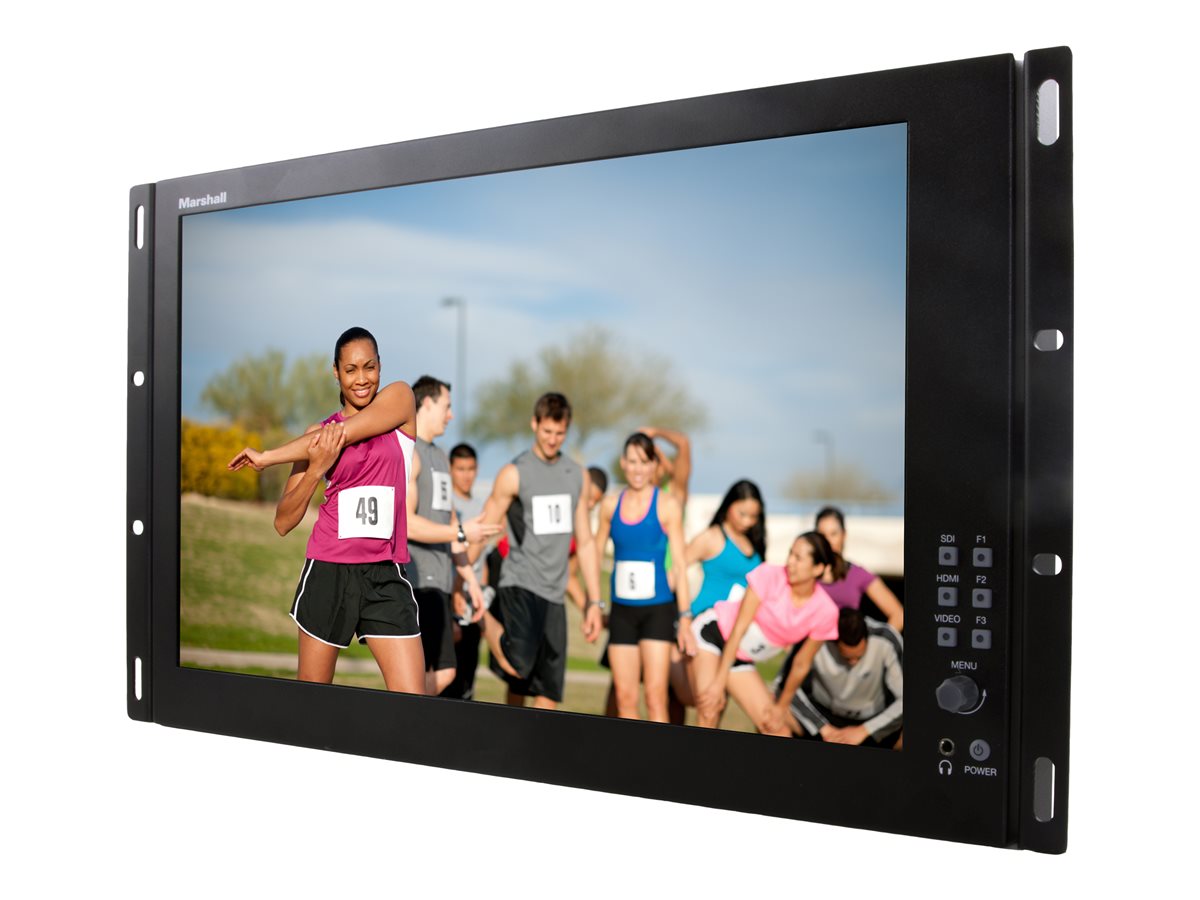

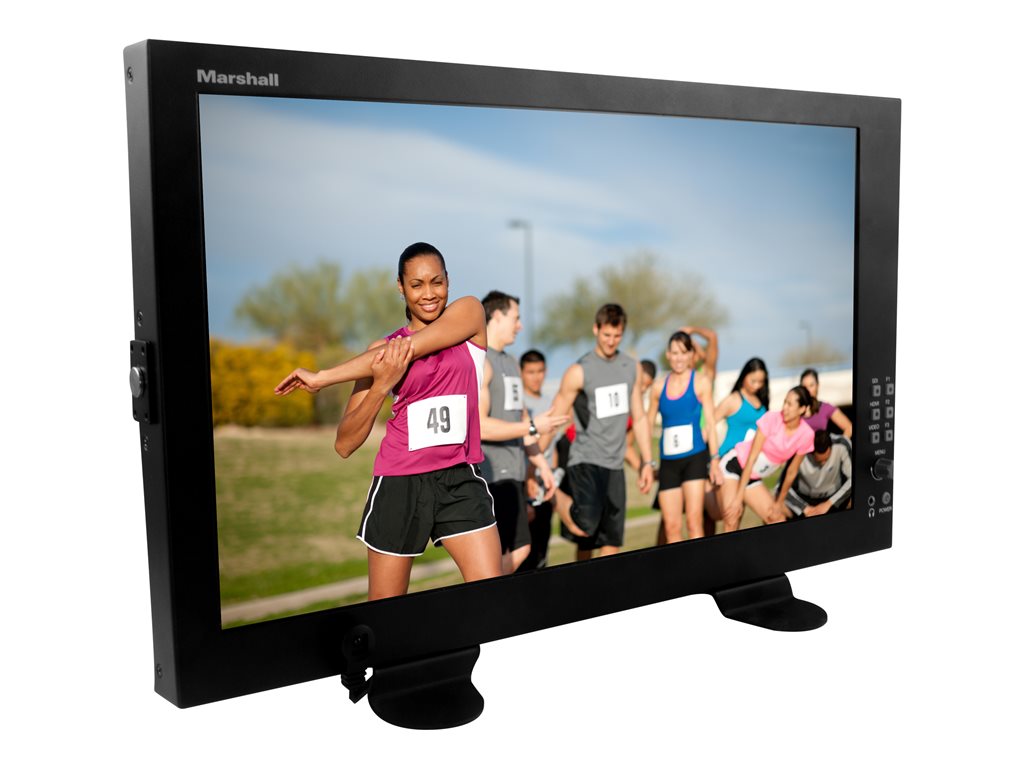

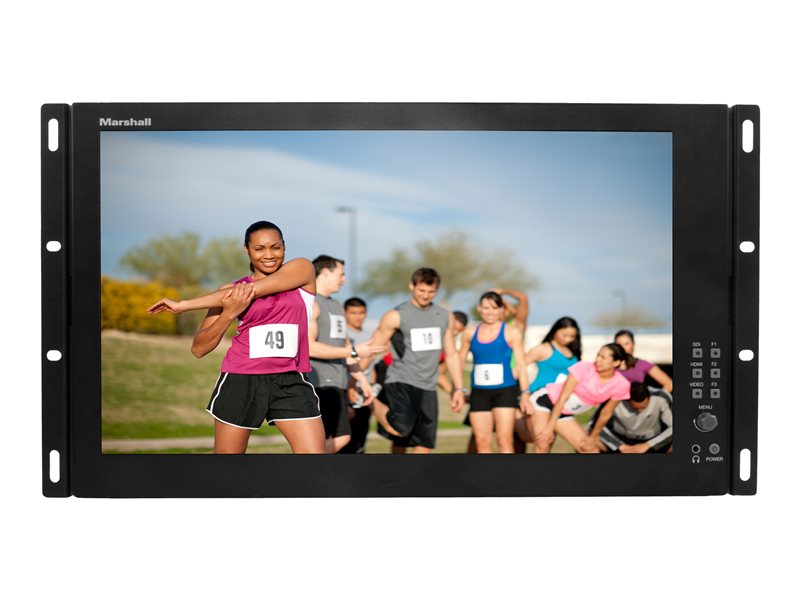

Marshall Electronics - Marshall V-LCD173HR
LED monitor - 17.3" - rack-mountable / desktop - 1920 x 1080 Full HD (1080p) - 300 cd/m² - 700:1 - HDMI, BNC (3G/HD/SD-SDI), BNC (composite) - 6U
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | Marshall V-LCD173HR - LED monitor - Full HD (1080p) - 17.3" |
| Device Type | LED-backlit LCD monitor - 17.3" |
| Native Resolution | Full HD (1080p) 1920 x 1080 |
| Brightness | 300 cd/m² |
| Contrast Ratio | 700:1 |
| Color Support | 16 million colors |
| Input Connectors | HDMI, BNC (3G/HD/SD-SDI), BNC (composite) |
| Dimensions (WxDxH) | 17.7 in x 1.3 in x 10.5 in |
| Height (Rack Units) | 6U |
| Weight | 7.94 lbs |
| Compliant Standards | FCC, WEEE |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Display Type | LED-backlit LCD monitor |
| Diagonal Size | 17.3" |
| Native Resolution | Full HD (1080p) 1920 x 1080 |
| Brightness | 300 cd/m² |
| Contrast Ratio | 700:1 |
| Color Support | 16 million colors |
| Horizontal Viewing Angle | 178 |
| Vertical Viewing Angle | 178 |
| Backlight Technology | LED backlight |
| Features | Rec 709 color gamut, LED Tally lights, Image Flip, Pixel to Pixel, Histogram mode, Peaking Mode, False Color mode, Exposure Level mode |
| Dimensions (WxDxH) | 17.7 in x 1.3 in x 10.5 in |
| Height (Rack Units) | 6U |
| Weight | 7.94 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Features | For 19" server cabinets |
| Included Accessories | TALLY Connector |
| Compliant Standards | FCC, WEEE |
| Power | |
| Power Consumption (Max) | 32 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Connectivity | |

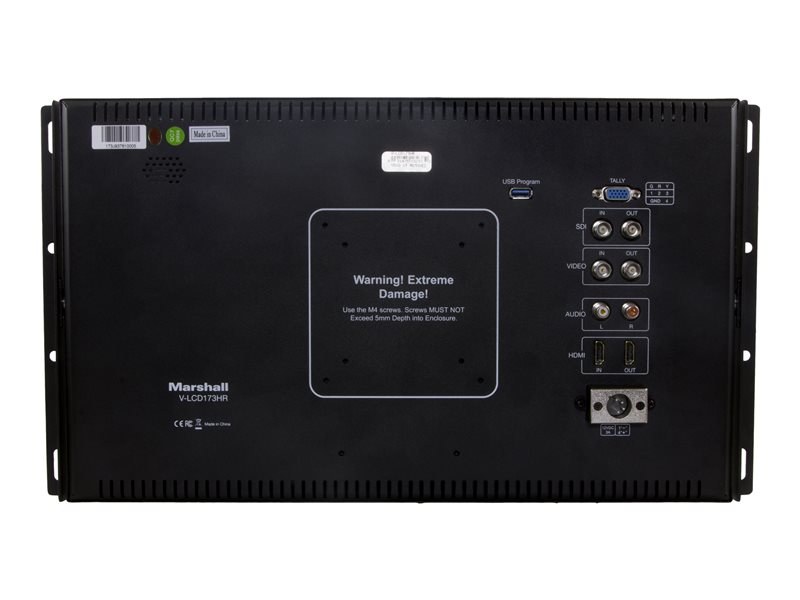

| Interfaces | 3G/HD/SD-SDI input (BNC) ¦ 3G/HD/SD-SDI output (BNC) ¦ Composite video input (BNC) ¦ Composite video output (BNC) ¦ HDMI ¦ HDMI output ¦ USB 3.0 (firmware update only) ¦ Audio line-in (RCA x 2) ¦ Tally (HD-15) ¦ Audio line-out (mini-jack) |
| Mechanical | |
| VESA Mounting Interface | 75 x 75 mm, 100 x 100 mm |
