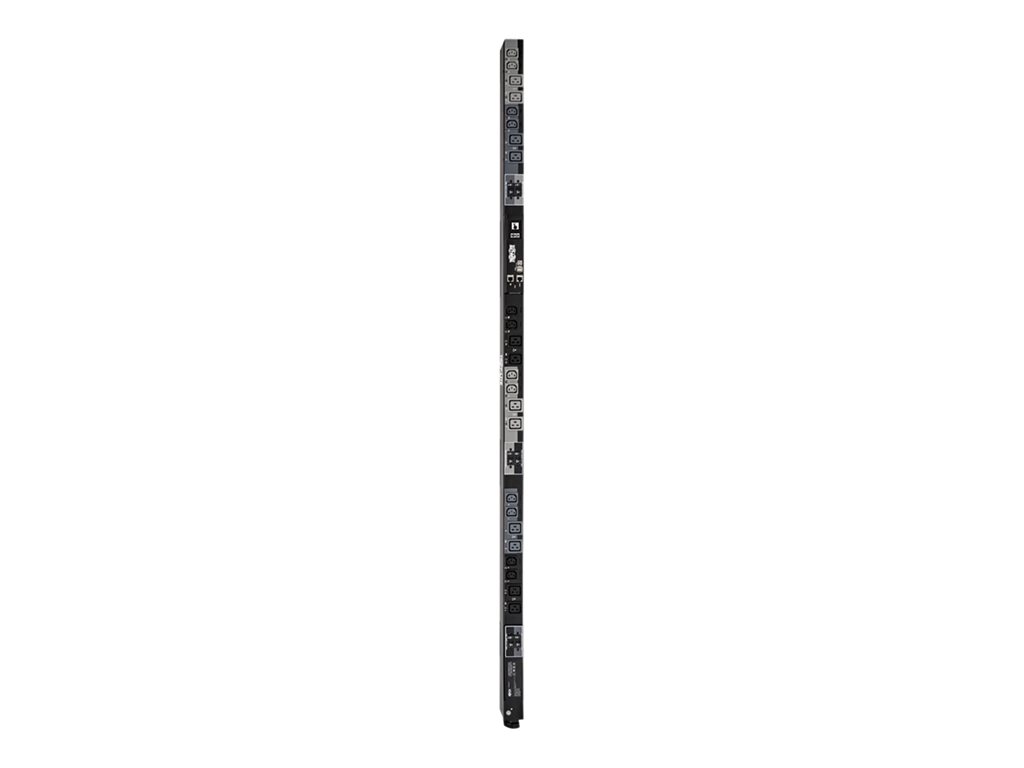

Tripp Lite - Tripp Lite 28.8kW 3-Phase Switched PDU w/LX Platform, 220/230/240V Output, Hardwire, Touchscreen LCD, 0U, TAA
Power distribution unit (rack-mountable) - 40 A - AC 380/400/415 V - 28.8 kW - 3-phase - Ethernet 10/100, USB - input: hardwire - output connectors: 24 (12 x IEC 60320 C13, 12 x IEC 60320 C19) - 0U - 6 ft cord - TAA Compliant
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | Tripp Lite 28.8kW 3-Phase Switched PDU w/LX Platform, 220/230/240V Output, Hardwire, Touchscreen LCD, 0U, TAA - power distribution unit - 28.8 kW - TAA Compliant |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 6 ft |
| Rack Size | 0U |
| Weight | 13.01 lbs |
| Input Wiring | 3-phase |
| Input Voltage | AC 380/400/415 V |
| Output Voltage | AC 220/230/240 V |
| Power Capacity | 28.8 kW |

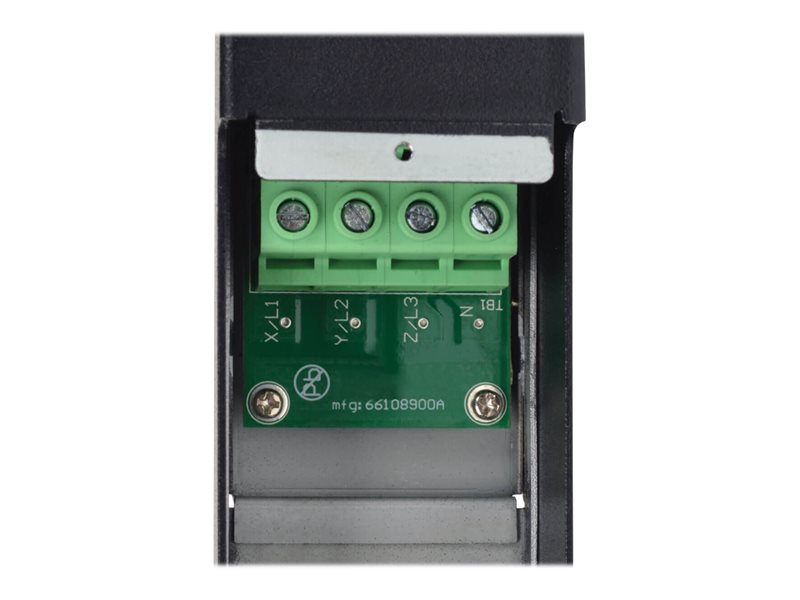

| Input Connectors | 1 x hardwire |

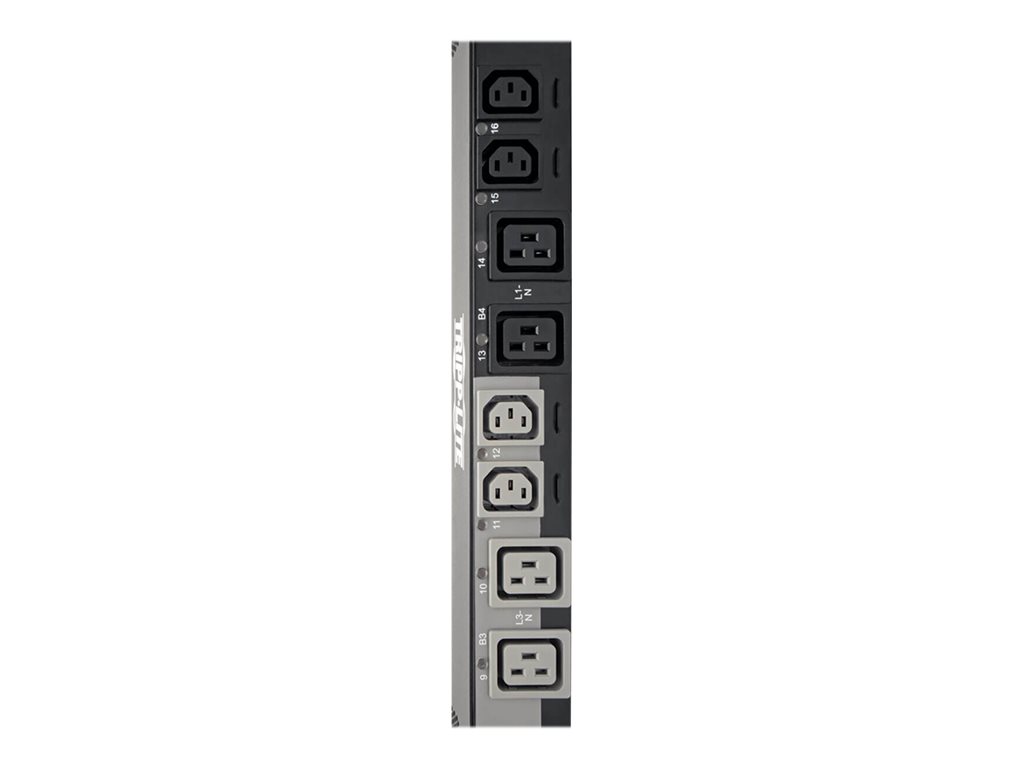

| Output connectors | 24 x power IEC 60320 C13 - 230 V 12 A ¦ 6 x power IEC 60320 C19 - 230 V 16 A |
| Networking | Ethernet 10/100, USB |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SMTP |

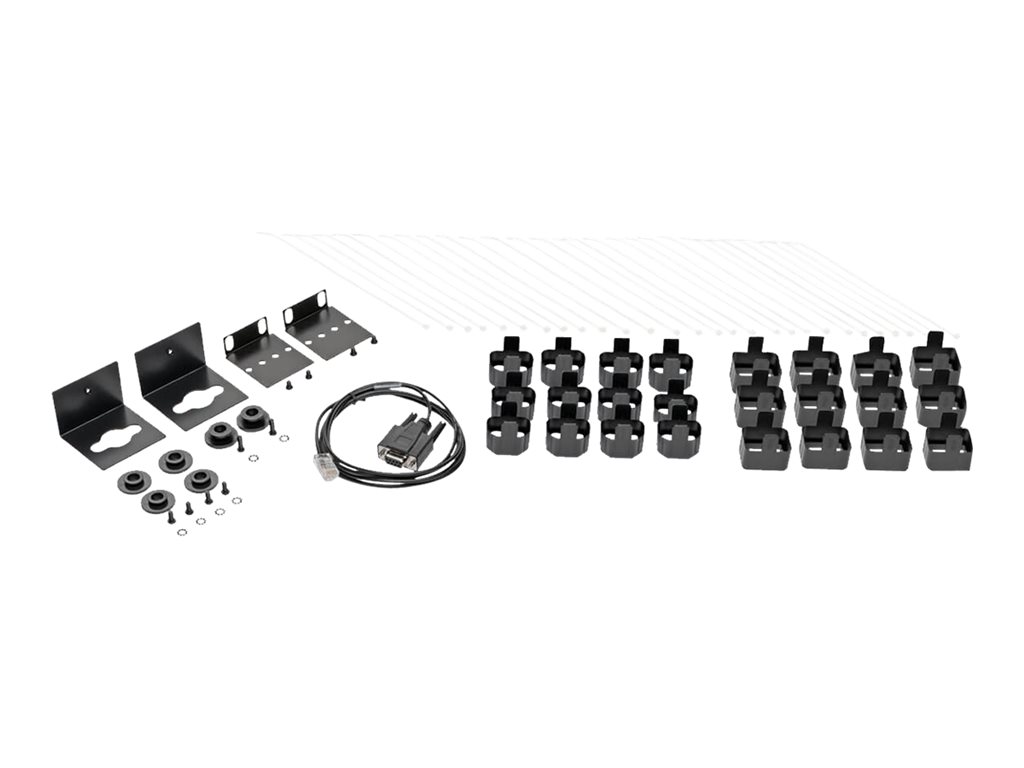

| Included Accessories | 24 plug-lock inserts |
| TAA Compliant | TAA Compliant |
| Dimensions (WxDxH) | 2.2 in x 2.5 in x 70 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 6 ft |
| Expansion / Connectivity | |

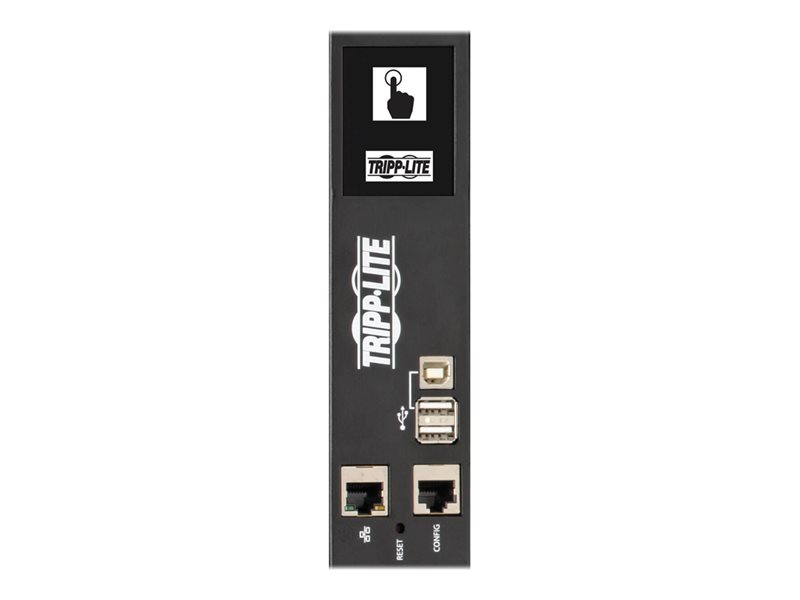

| Interfaces | 1 x management (Fast Ethernet) - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B ¦ 1 x management - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | 24 plug-lock inserts |
| Cables Included | Power cable - integrated - 6 ft ¦ Management cable - external |

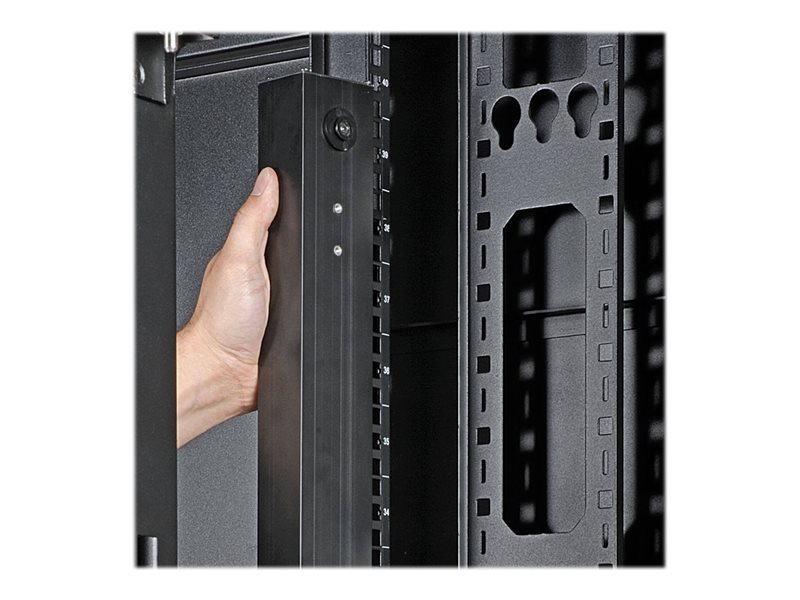

| Rack Mounting Kit | Included |
| Features | LED indicator, vertical orientation, voltage monitoring, current meter, overload protection, digital power meter, email alerts support, firmware upgradable, touch screen LCD display, energy meter, switched |
| Compliant Standards | IEC60950-1:2005+A1:2009, UL 60950-1:2007, CAN/CSA-C22.2 No. 60950-1-07+A1:2011, NOM, FCC Class A certified, RoHS |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100, USB |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SMTP |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Power Device | |
| Input Voltage | AC 380/400/415 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 3-phase |
| Input Connectors | 1 x hardwire |
| Power Output Connectors Details | 24 x power IEC 60320 C13 - 230 V 12 A ¦ 6 x power IEC 60320 C19 - 230 V 16 A |
| Output Voltage | AC 220/230/240 V 50/60 Hz |
| Max Electric Current | 40 A |
| Power Capacity | 28.8 kW |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 2.5 in |
| Height | 70 in |
| Weight | 13.01 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.9 in |
| Shipping Depth | 5.9 in |
| Shipping Height | 76.6 in |
| Shipping Weight | 17.13 lbs |
