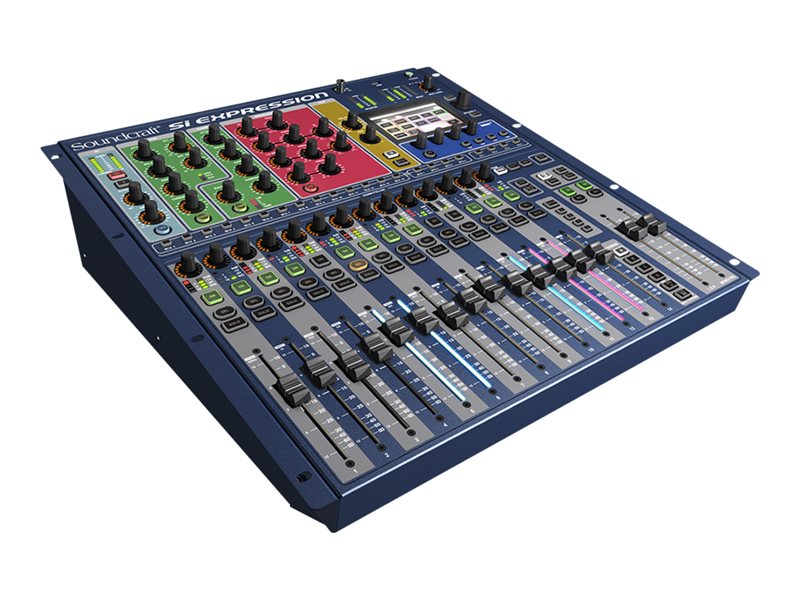

Harman - Soundcraft Si Expression 1
Digital mixer with Lexicon FX - 14-channel
Harman
5035677
0688705000336
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Soundcraft Si Expression 1 digital mixer - 14-channel |
| Type | Digital mixer with Lexicon FX - 14-channel |
| Bus Type | HiQnet, AES/EBU |
| Frequency Response | 20 Hz - 20 kHz |
| Mic Phantom Power | 48 V |
| Mic Channels | 16 mono |
| Line Channels | 20 mono |
| Dimensions (WxDxH) | 19 in - 20.5 in - 6.6 in |
| Weight | 26.01 lbs |
| Manufacturer Warranty | 1 year |
| General | |
| Type | Digital mixer with Lexicon FX |
| Bus Type | HiQnet, AES/EBU |
| Manufacturer Warranty | |
| Warranty | 1 year |
| Power | |
| Voltage Required | AC 100/120/230 V |
| Frequency | 50/60 Hz |
| Connections | |

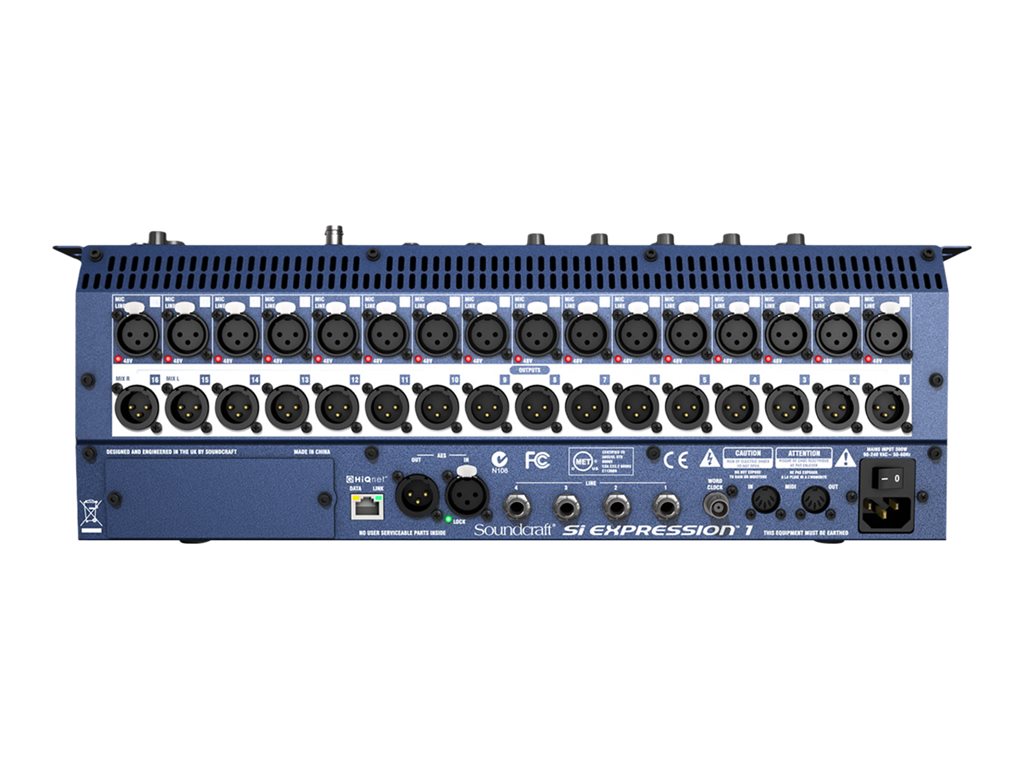

| Connector Type | 16 x balanced audio input (XLR) - rear ¦ 16 x balanced audio output (XLR) - rear ¦ 1 x HiQnet (RJ-45) - rear ¦ 1 x AES/EBU input (XLR) - rear ¦ 1 x AES/EBU output (XLR) - rear ¦ 4 x audio line-in (phone 6.3 mm) - rear ¦ 1 x Wordclock input (BNC) - rear ¦ 1 x MIDI input (5 pin DIN) - rear ¦ 1 x MIDI output (5 pin DIN) - rear |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 20.5 in |
| Height | 6.6 in |
| Weight | 26.01 lbs |
| Mixer | |
| Channels Qty (total) | 14-channel |
| Frequency Response | 20 Hz - 20 kHz |
| Mic Phantom Power | 48 V |
| Control Types | Faders, rotary encoders, keys |
| Features | External lamp BNC connector, Soundcraft FaderGlow, ViSi Connect expansion slot, built-in compressor |
| Channel Description | |
| Mic Channels | 16 mono |
| Mic Channels Connector | XLR |
| Line Channels | 20 mono |
| Line Channels Connector | XLR, phone 6.3 mm |
| EQ Band Qty | 4 |
